PECO Filters
Oil & Gas Filtration & Separation Solutions
Advanced Filtration. Efficient Separation. Reliable Process Performance.
Parker PECO is a leading technology brand for Oil & Gas filtration, coalescing and separation, engineered to solve complex contamination challenges throughout critical process systems.
With more than 80 years of experience in Oil & Gas filtration, PECO technologies help remove solids, liquids, aerosols and process contaminants from gas and liquid streams — protecting critical equipment, improving process efficiency and helping reduce maintenance and unplanned downtime.
From the wellhead and gathering system through gas processing, transmission, LNG, refining and petrochemical operations, Parker PECO provides filtration technologies engineered around demanding process conditions.
Through MONILEK Oilfield, customers across the Middle East can access Parker PECO filtration technologies supported by MONILEK's capabilities in Filtration Systems & Solutions, Oil & Gas, Process Equipment and engineered packages.
Complete Oil & Gas Filtration Solutions
PECO provides technologies for controlling contamination throughout the hydrocarbon process.
FILTER → COALESCE → SEPARATE → ADSORB → PROTECT

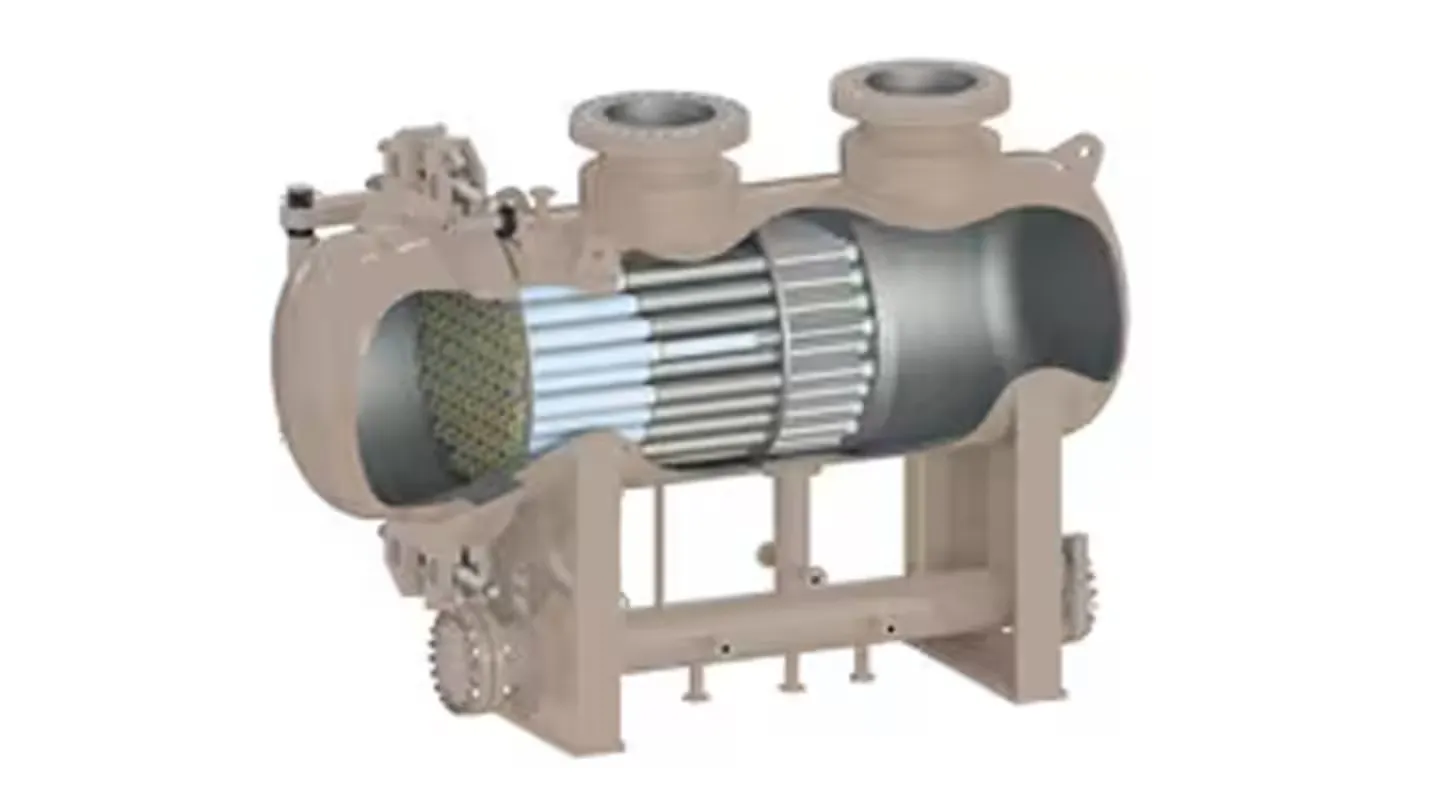

Series GEM2 & PGCPH, PEACH GEMINI PURASEP® 2
Horizontal gas coalescer providing ultra-clean gas with high efficiency removal of solid and liquid contaminants down to 0.3 microns. It is designed to remove liquids such as lubricating oils, low surface tension liquids and aerosol mists. Made in 6" to 84" diameters with stock options available.

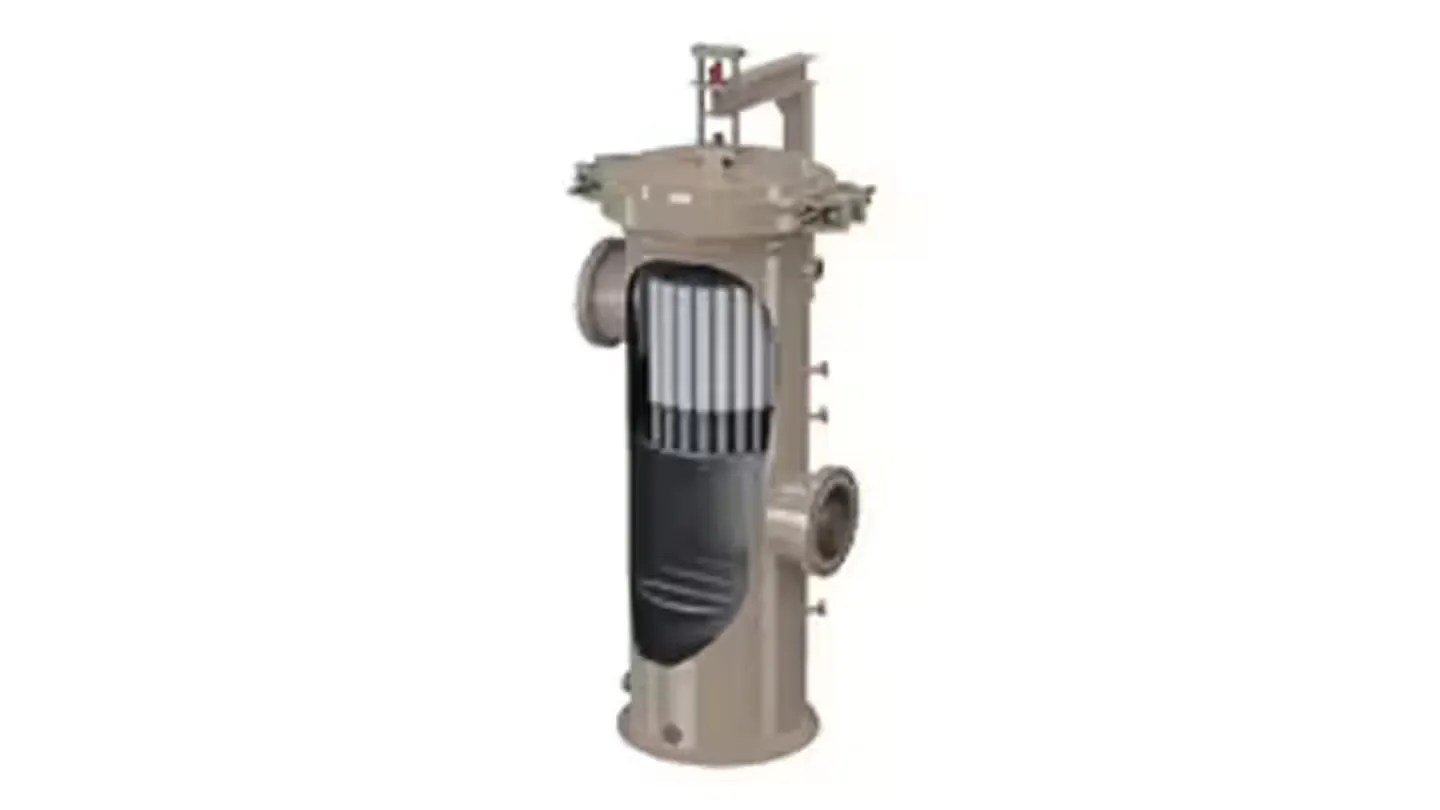

Series 77V, SPARTAN PURASEP®
Vertical gas coalescer with highly efficient removal of aerosol mist down to the 0.3 micron level. Made in 6" to 60" diameters with stock options available.

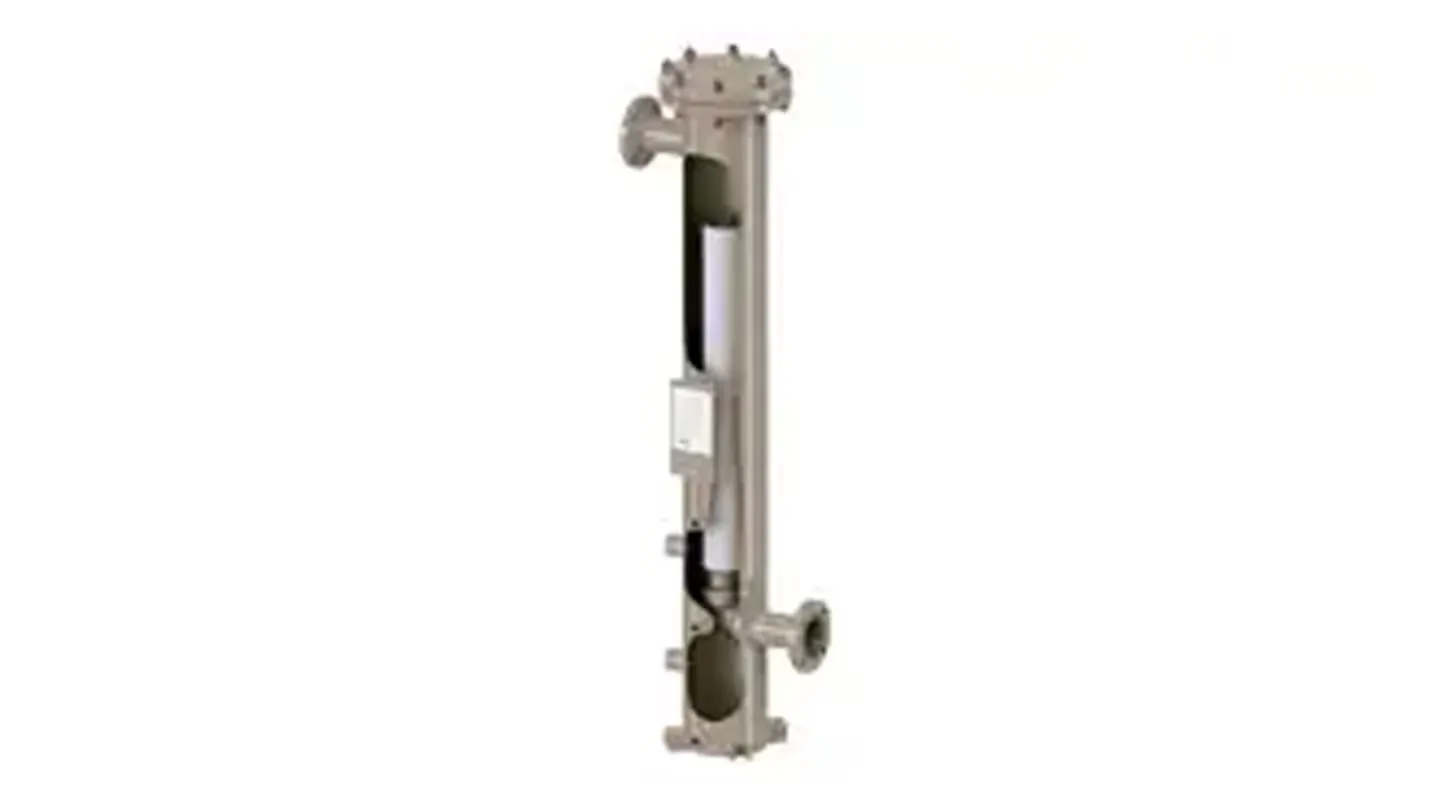

Series 89, Small Volume
Vertical gas coalescer used for smaller volume applications with a maximum liquid loading of 8 gallons per day. Liquid aerosol removal down to the 0.3 micron level. Stock units available from 6" to 10" diameter at 150# ANSI rating.

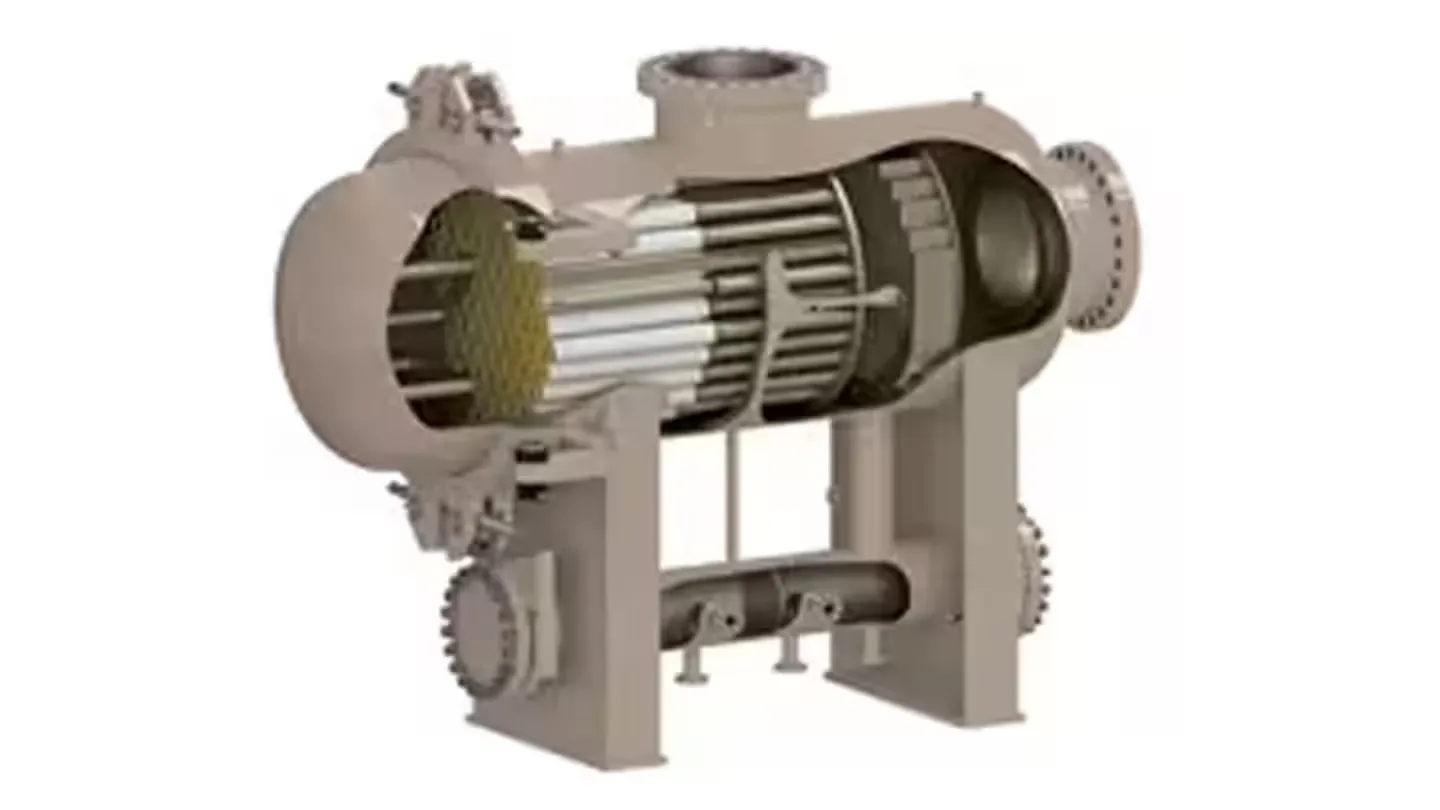

Series 75TL, TITAN PURASEP®
Vertical and horizontal quick change filter-separator for solid and liquid contaminant removal 1 micron and larger. Vessel contains a first stage filter cartridge followed by a second stage mist extraction device such as a wave plate or cyclotube. Made in 6" to 84" diameters.

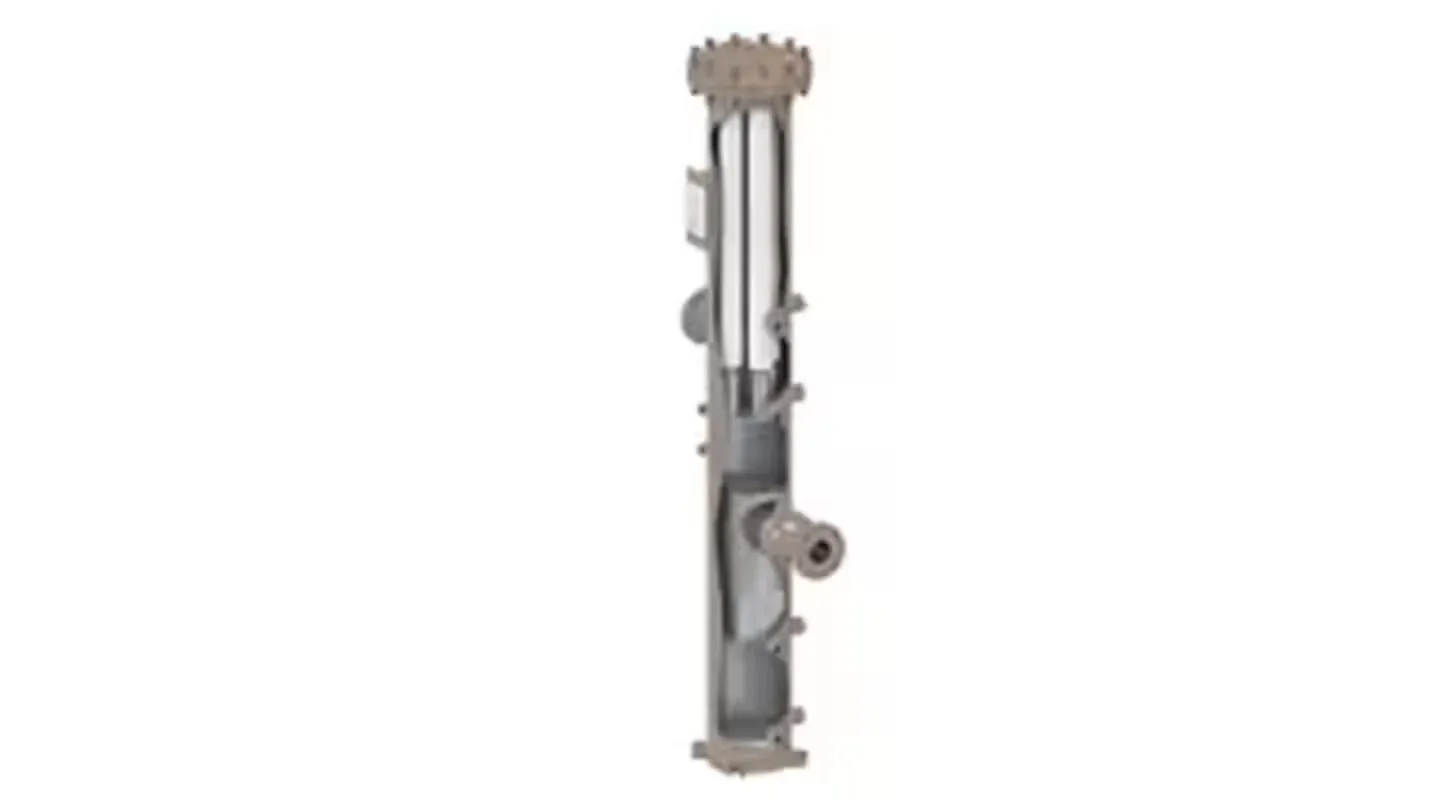

Series 85, Small Volume
Vertical gas filter-separator for use in smaller volume applications such as fuel gas conditioning filtration. Solids and liquid contaminant removal 1 micron and larger. Stock units available from 6" to 10" diameter at 150# ANSI rating.

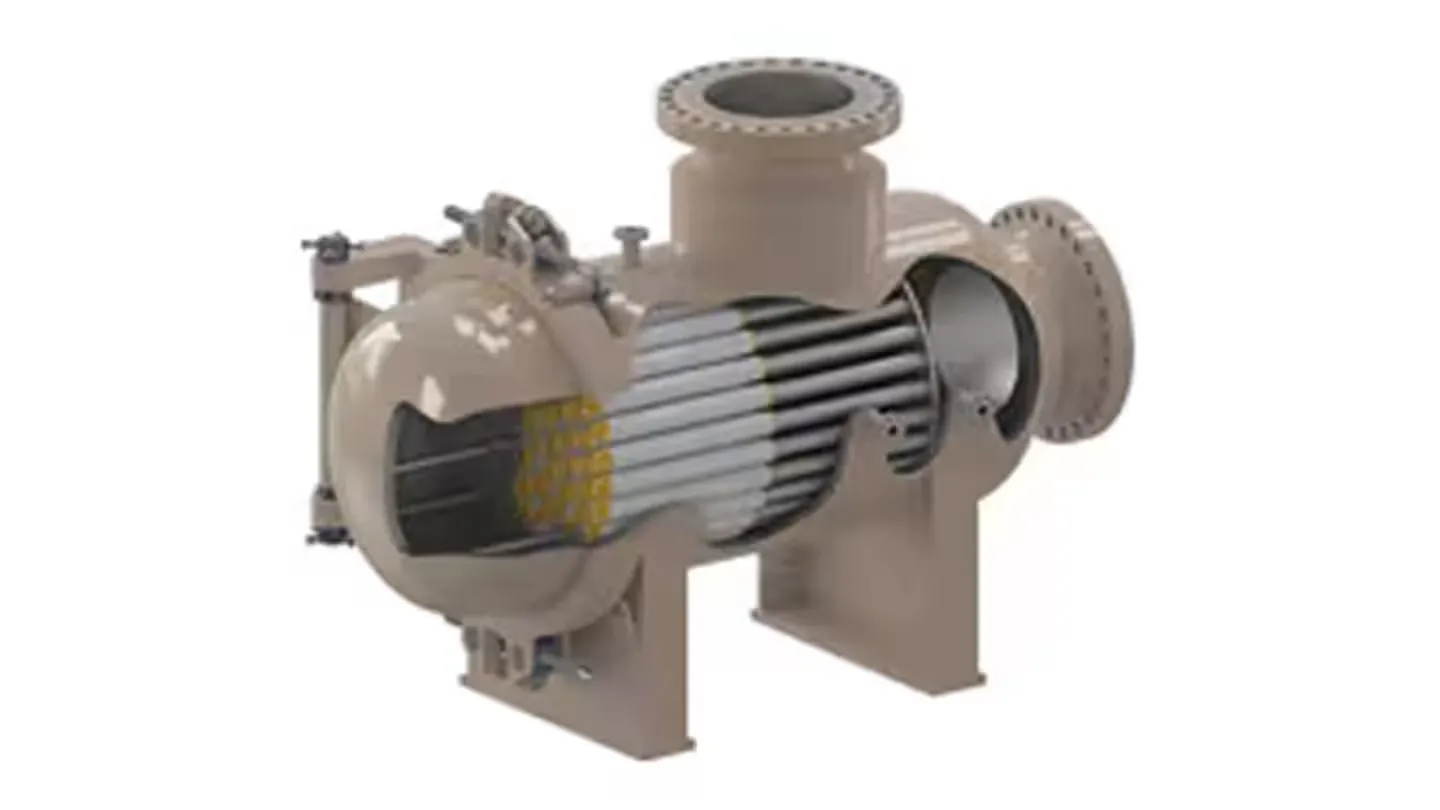

Series 70TL, TITAN PURASEP®
Vertical and horizontal quick change gas filter for removal of dry, solid contaminants. Variety of micron rating filtration levels available. Made in 6" to 84" diameters.

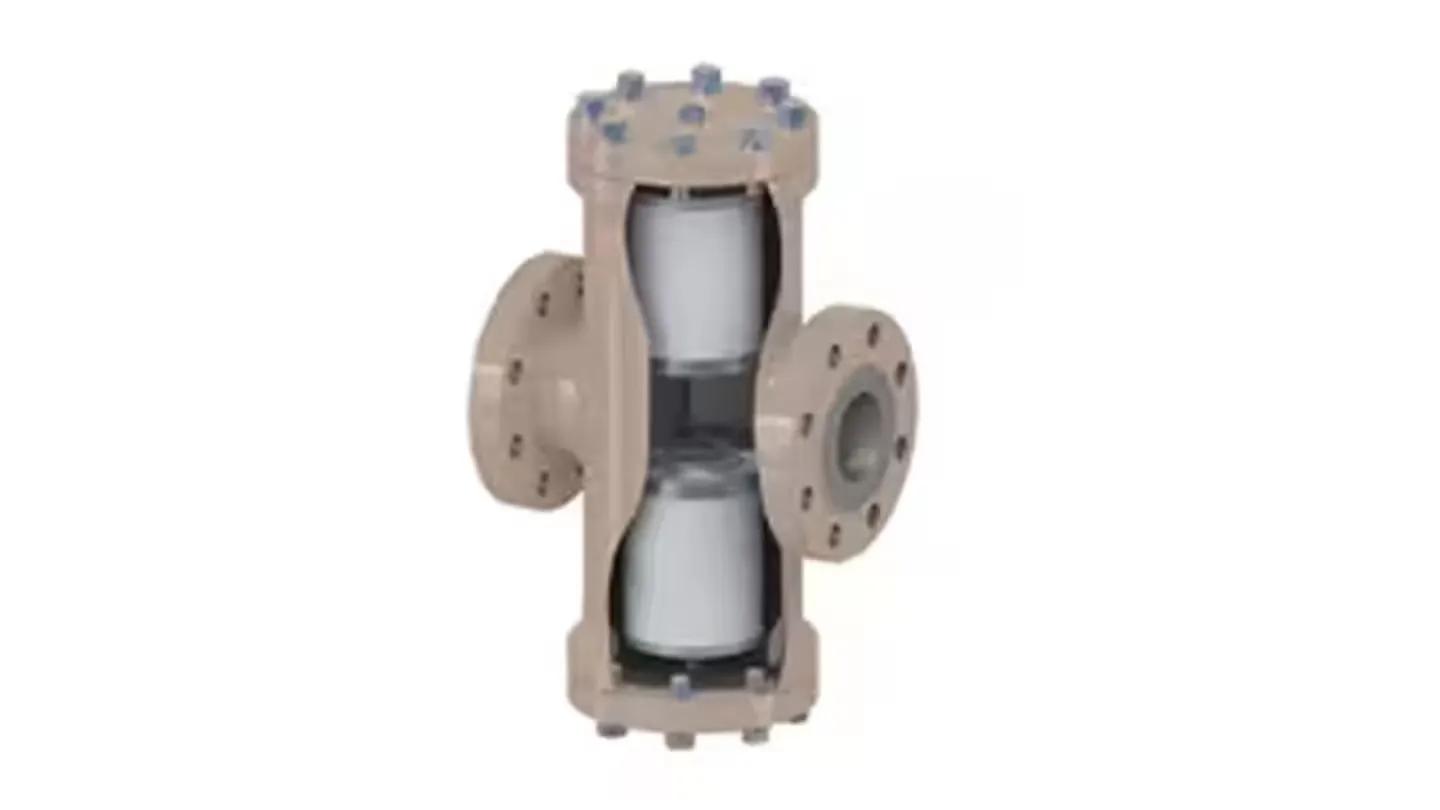

Series 30, In-Line Cast Steel
In-line dry gas filter for gas distribution, regulator stations, instrument gas applications. Variety of micron rating filtration levels available. Made in cast steel design, units are available in 2", 3" and 4" flange connections at 150#, 300# and 600# ANSI ratings.

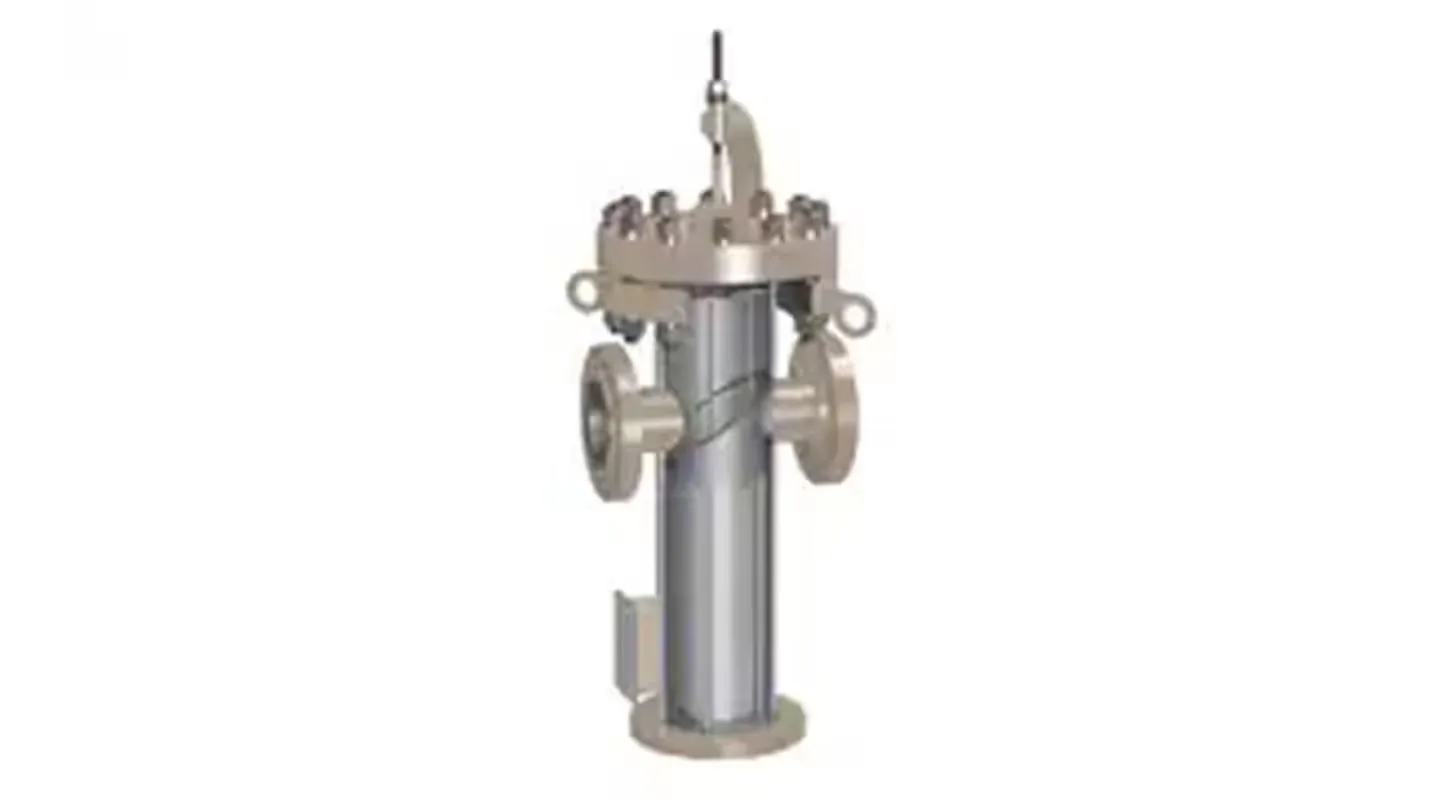

Series 30, In-Line Fabricated Steel
In-line dry gas filter for gas distribution, regulator stations, instrument gas applications. Variety of micron rating filtration levels available. Made in fabricacted steel design, units are available in 2" to 12" flange connections at 150#, 300# and 600# ANSI ratings.

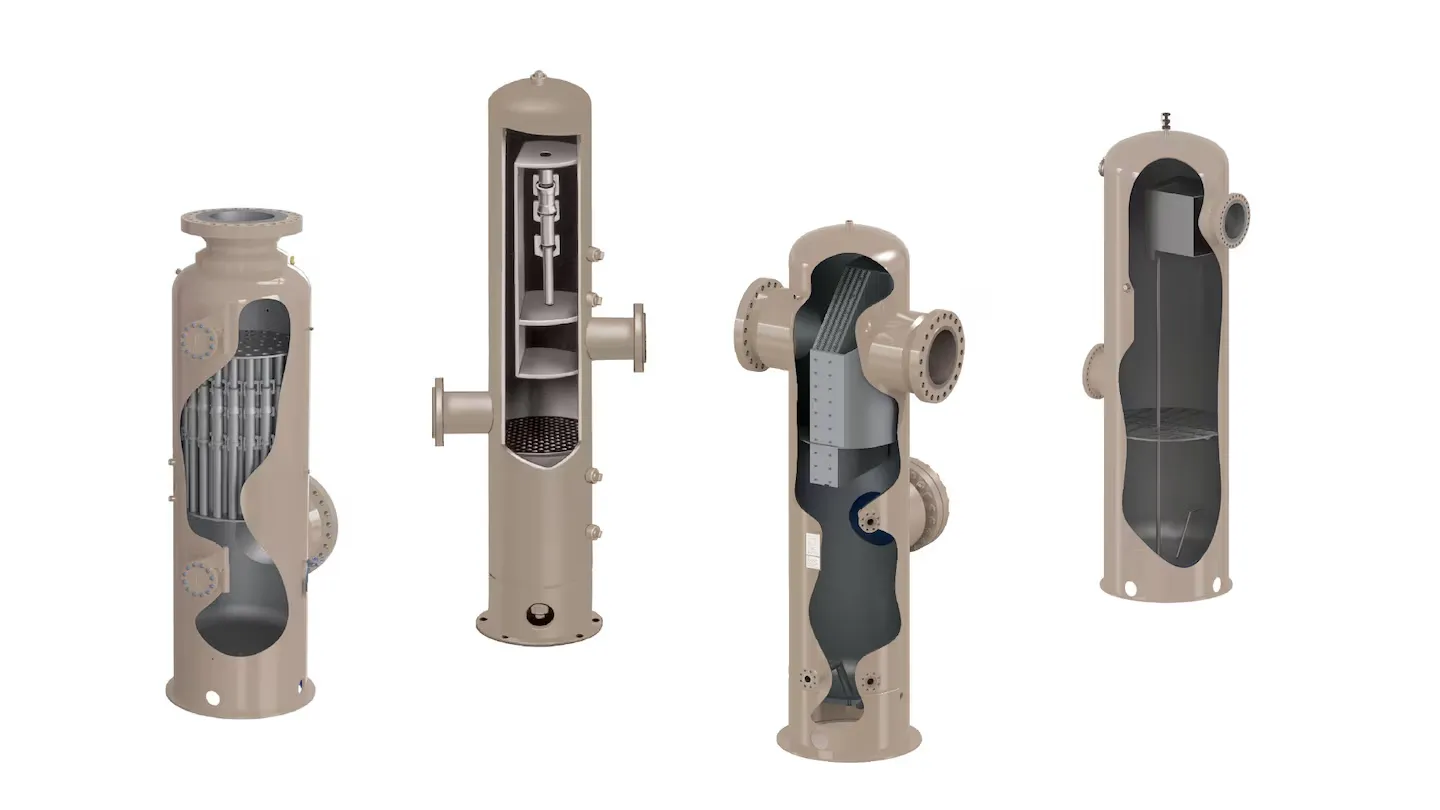

Series 95 Natural Gas Scrubbers & Separators
Series 95 Natural Gas Scrubbers and Separators are available in vertical and horizontal configurations to efficiently remove liquid contaminants from gas streams. Vane mist extractor models capture droplets 8–10 microns and larger, making them ideal for hydrocarbon liquids and water. For finer or more challenging liquids, Cyclotube® mist extractor models remove droplets 3 or 8 microns and larger and perform especially well with crawling and low-surface-tension liquids such as lube oil, glycol, paraffin, brine, and asphaltenes. Units are offered in 12" to 120" diameters to fit a wide range of applications.

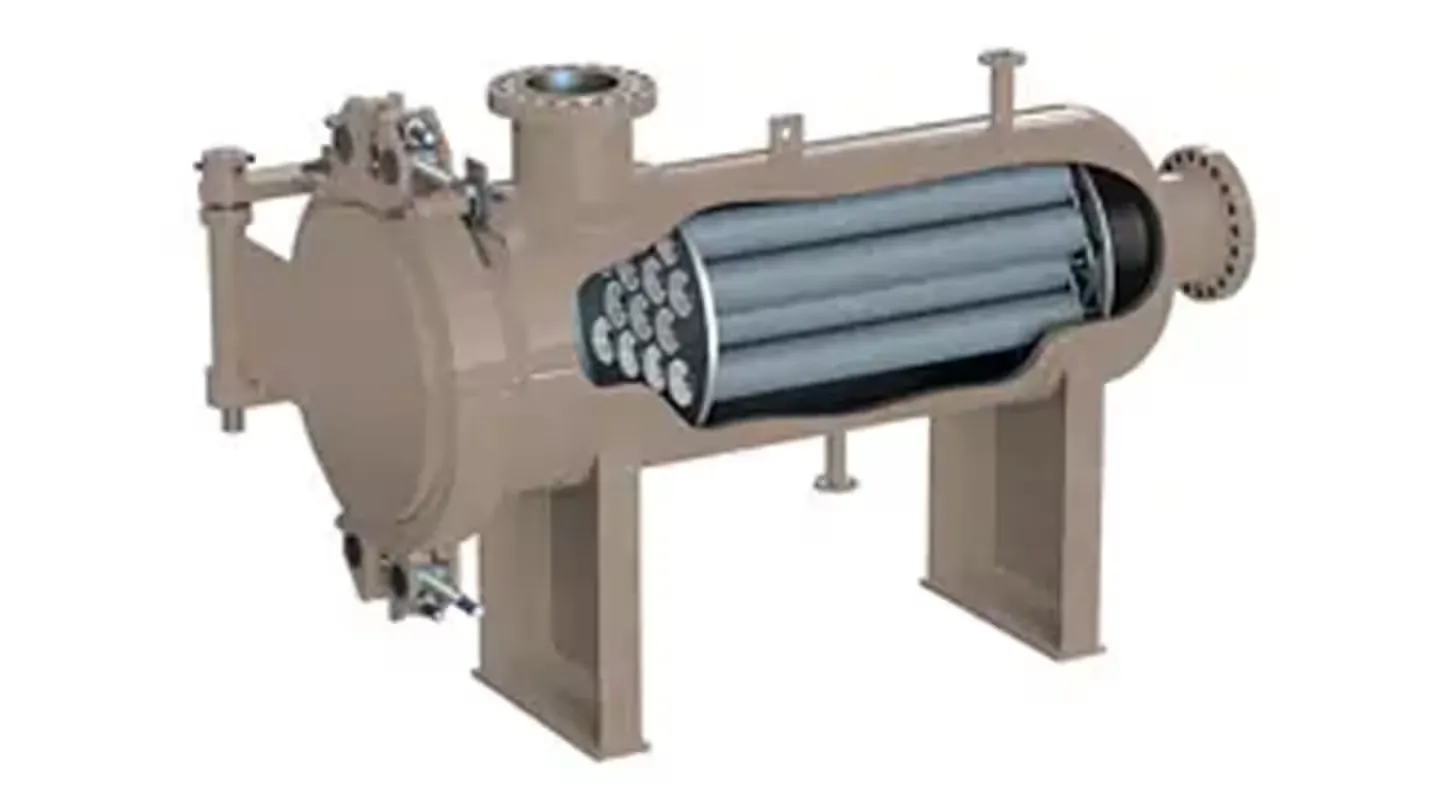

Series 55X, XTREAMPURE® High Flow Style
Vertical and horizontal liquid filter for removal of solid contaminants. Provides high flow rate and high contaminant loading by utilizing large 6” diameter cartridges in 40", 60", 80" lengths. Variety of cartridge styles and micron rating filtration levels available. Made in 10" to 84" diameters.

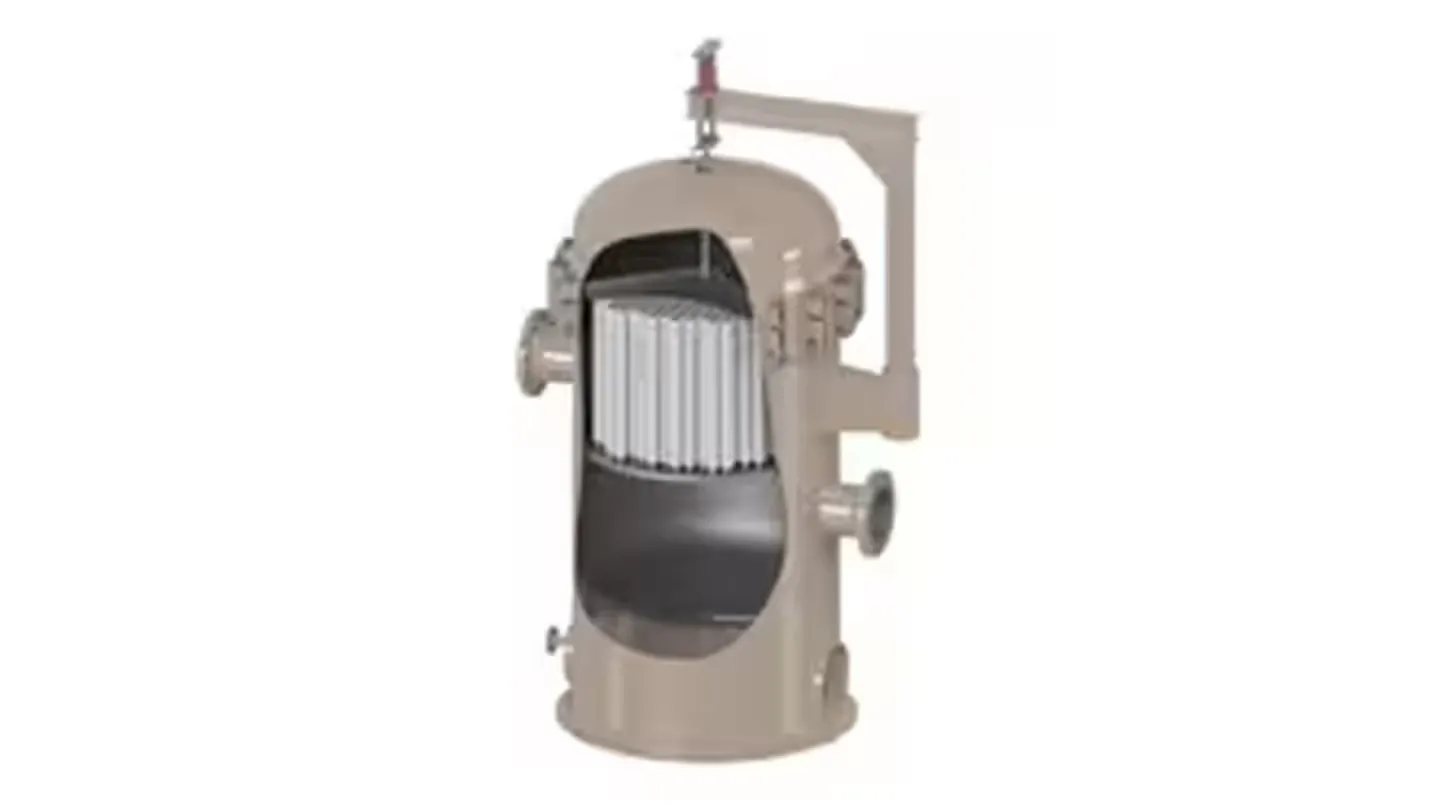

Series 55, Traditional Style
Vertical and horizontal liquid filter for removal of solid contaminants. Uses traditional 2.5" and 3" diameter cartridges. Variety of cartridge styles and micron rating filtration levels available. Made in 6" to 72" diameters.

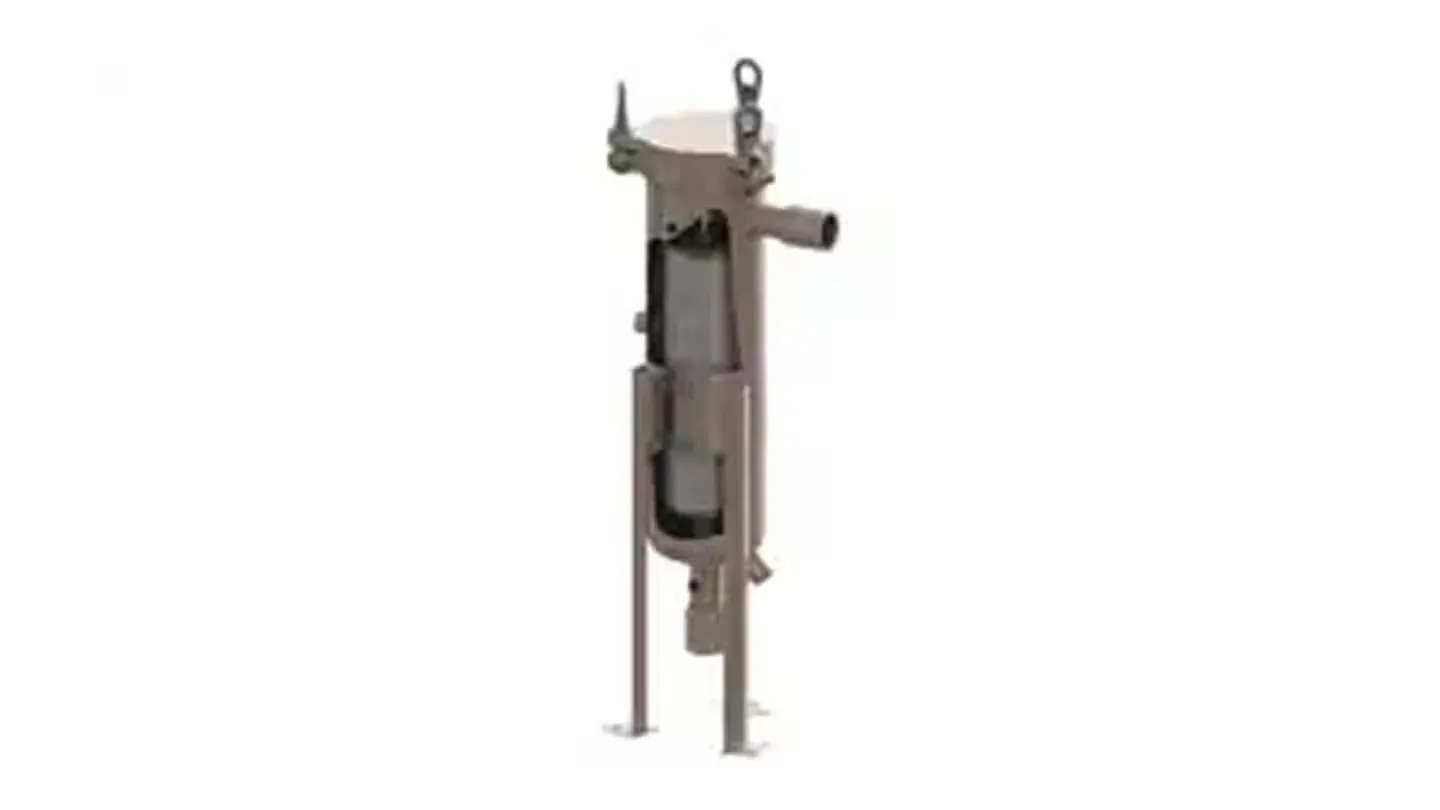

Series 55C CHEMELEAN® Economy Line
Liquid filter for removal of solid contaminants for flows up to 200 gpm. Comes in two sizes to hold a 20" or 40" length cartridge. Comes in 8” diameter and 150# ANSI rating. 2" NPT connections with option for 2" flange connections. Clamp saddles or legs allow for vertical or horizontal mounting.

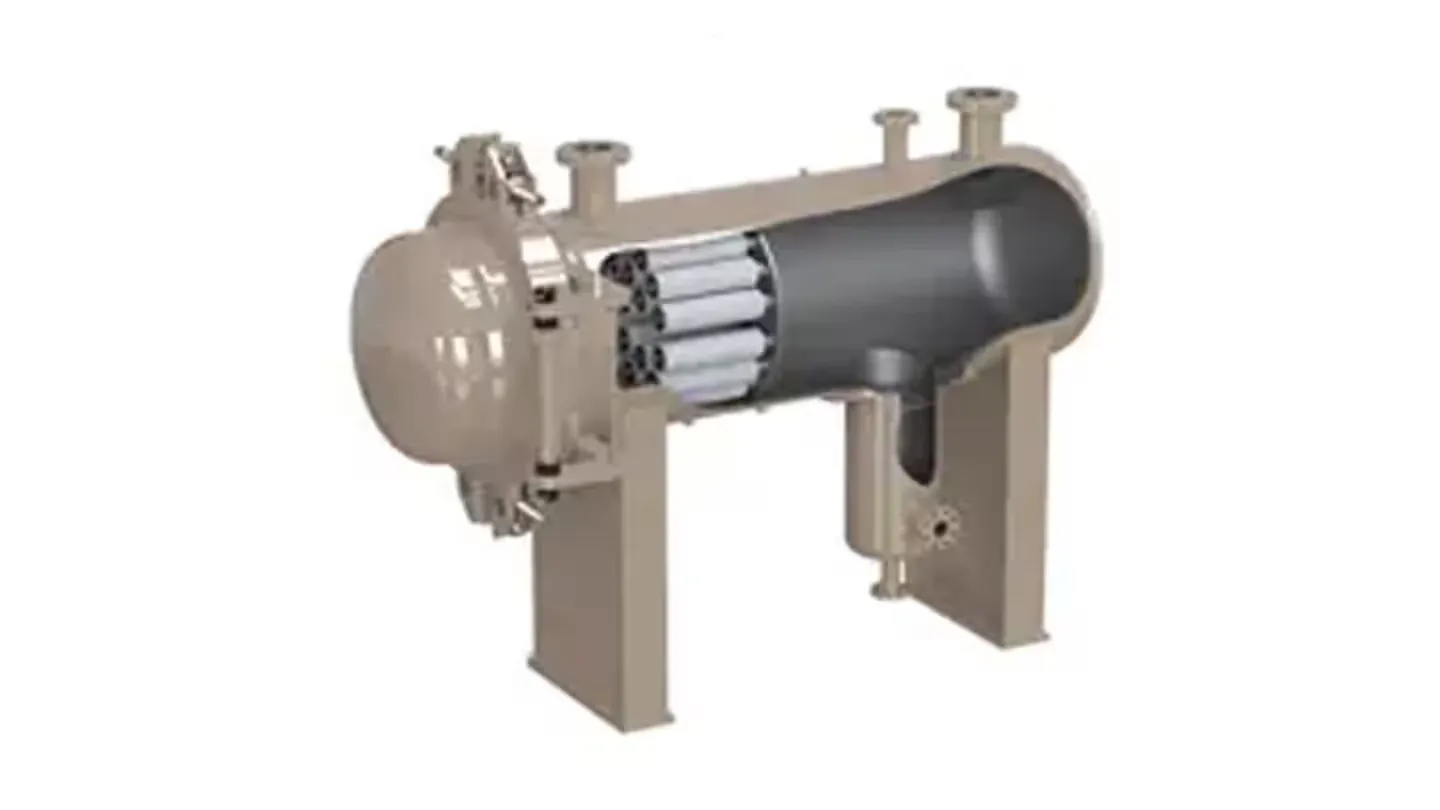

Series 110XP, XTREAMPHASE® High Flow Style
Horizontal vessel for coalescing and separating two immiscible liquids with an inlet discontinuous phase up to 10% by volume. Uses high flow style tooless cartridge technology with an advanced new vessel design to optimize separation. Made in 10" to 84" diameters.

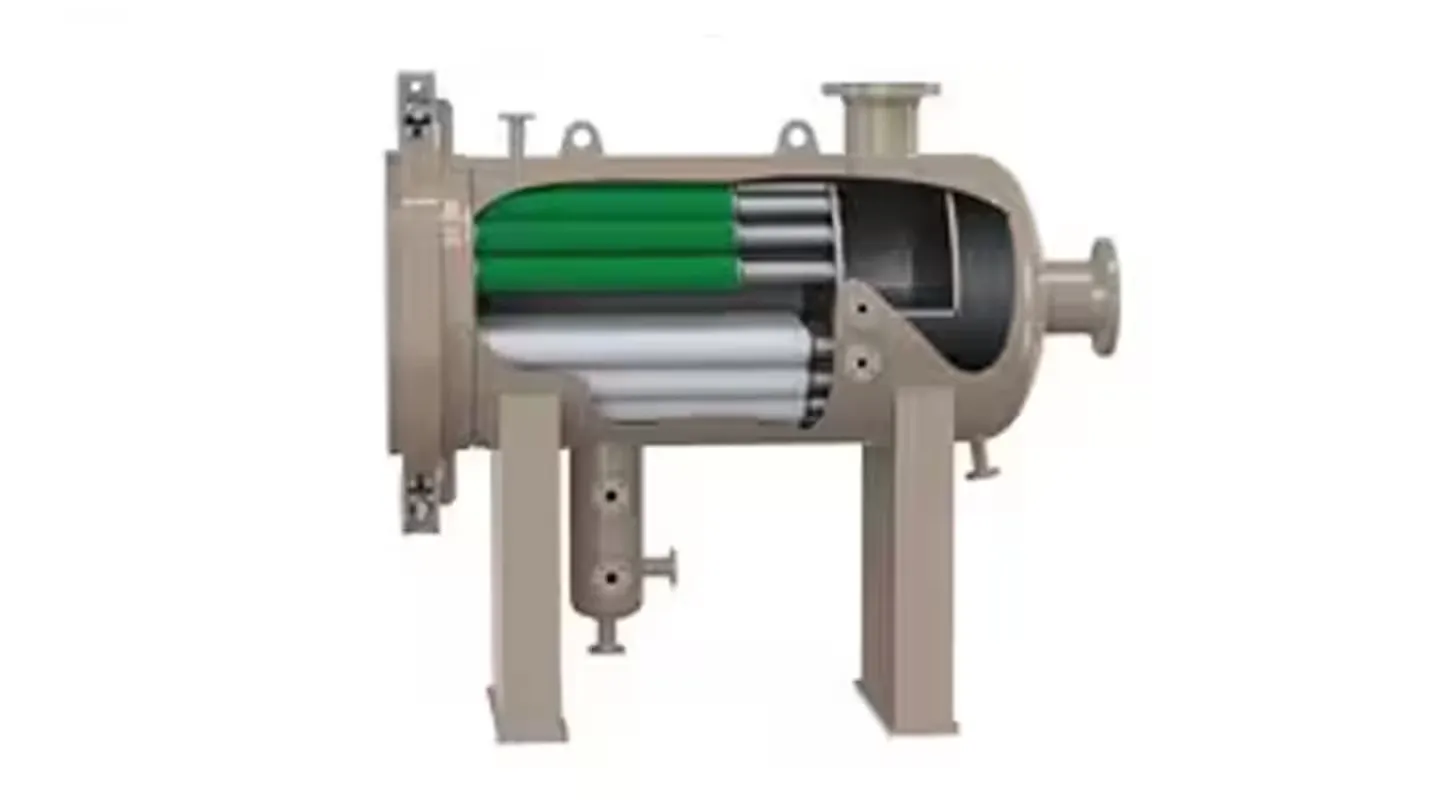

Series 110, INTERPHASE™ Traditional Two-Stage
Vertical and horizontal vessel for coalescing and separating two immiscible liquids with an inlet discontinuous phase up to 5% by volume. Removes discontinuous phase down to 8 ppm(v) or less. Uses hydrophillic coalescer and hydrophobic separator cartridges. Made in 14" to 60" diameters.

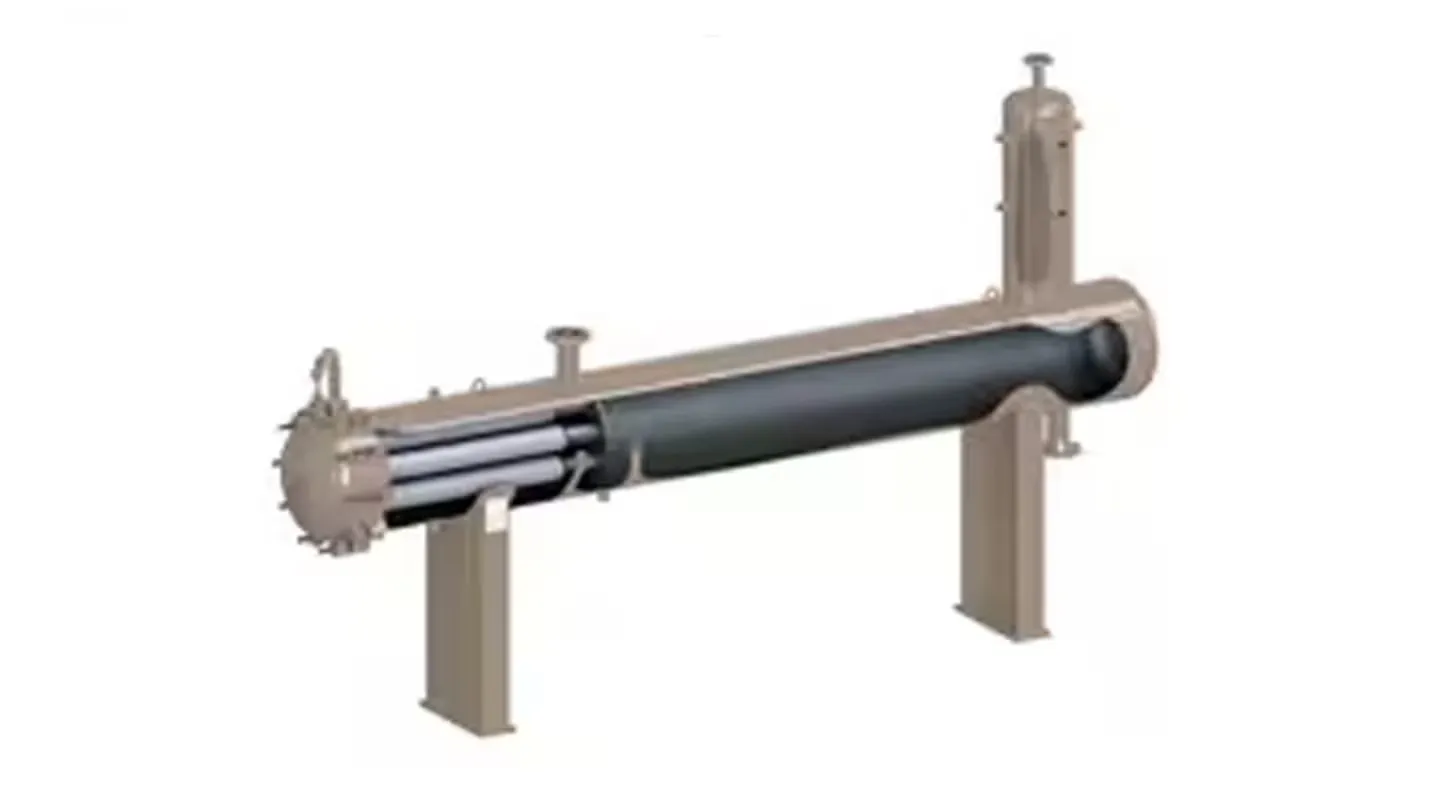

Series 110, XTREAMPHASE® Traditional Single Stage
Horizontal vessel for coalescing and separating two immiscible liquids. Density difference needs to be at least 20%. Uses mesh pad (wafer pack) to remove discontinuous phase. Removal performance excelsior or stainless steel 50-75 ppm(v) and glass 15-20 ppm(v). Made in 8” to 84” diameters.
