Parker Hannifin (Instrumentation)
Critical Flow & Process Control Solutions
Connecting, Controlling and Protecting the World's Most Critical Processes
Parker Hannifin's Instrumentation Products Division (IPD) is a global leader in the design and manufacture of high-quality instrumentation fittings, valves, manifolds, regulators, tubing systems and critical flow-control technologies.
Engineered for applications where safety, reliability, leak integrity and long-term performance are essential, Parker instrumentation technologies serve some of the world's most demanding industries — including Oil & Gas, Petrochemical, Chemical Processing, Power Generation, Industrial Gas, Hydrogen, LNG, Marine, Semiconductor, Biopharmaceutical and Analytical Systems.
Through a relationship with Parker extending over five decades, MONILEK Oilfield provides customers across the Middle East with Parker instrumentation technology supported by local inventory, application knowledge, technical support, training and engineered solutions.
Complete Instrumentation Solutions

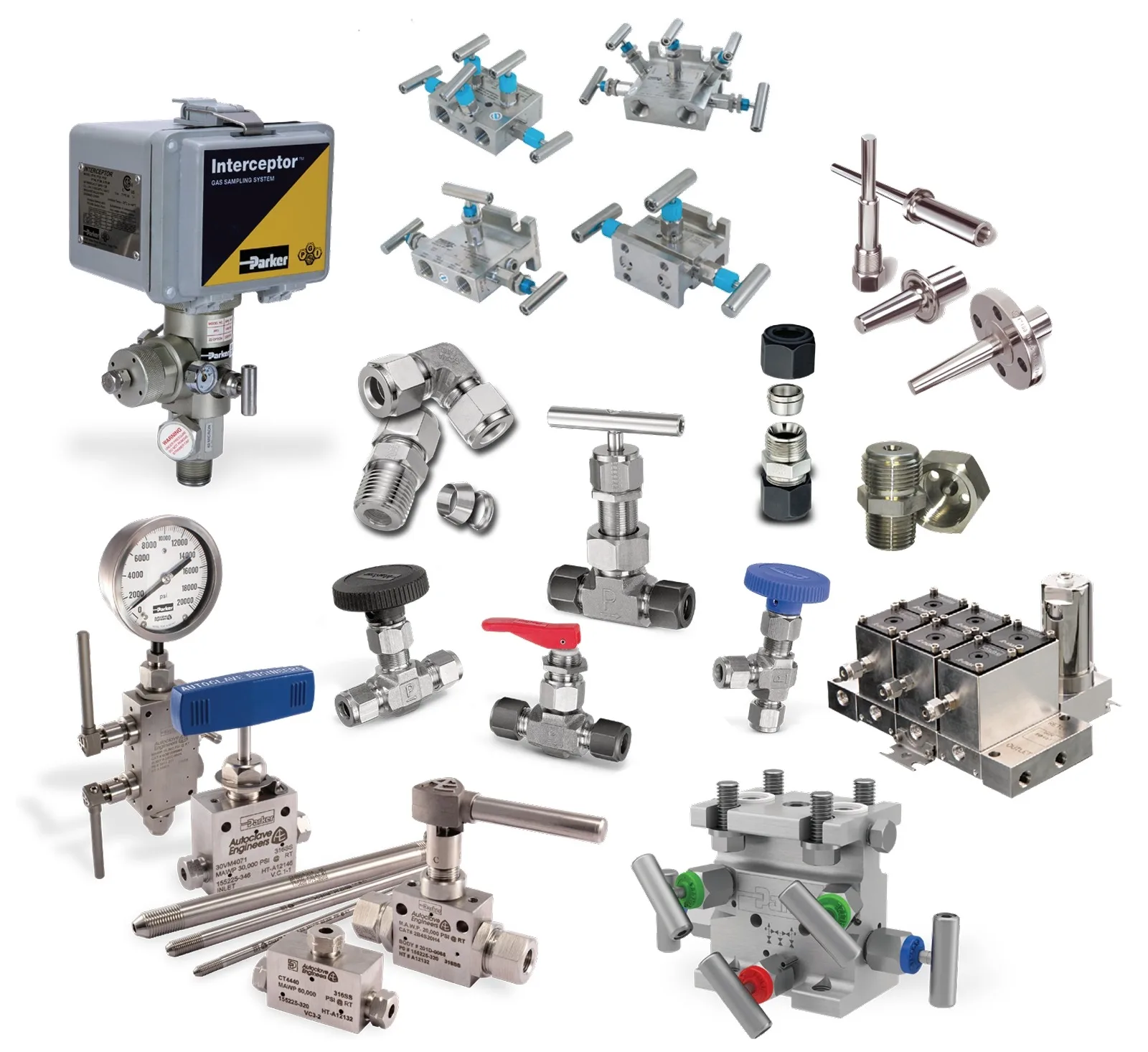

Parker IPD brings together a comprehensive portfolio covering the complete fluid path — from the process connection through instrumentation, measurement and control.
CONNECT → ISOLATE → CONTROL → MEASURE → PROTECT

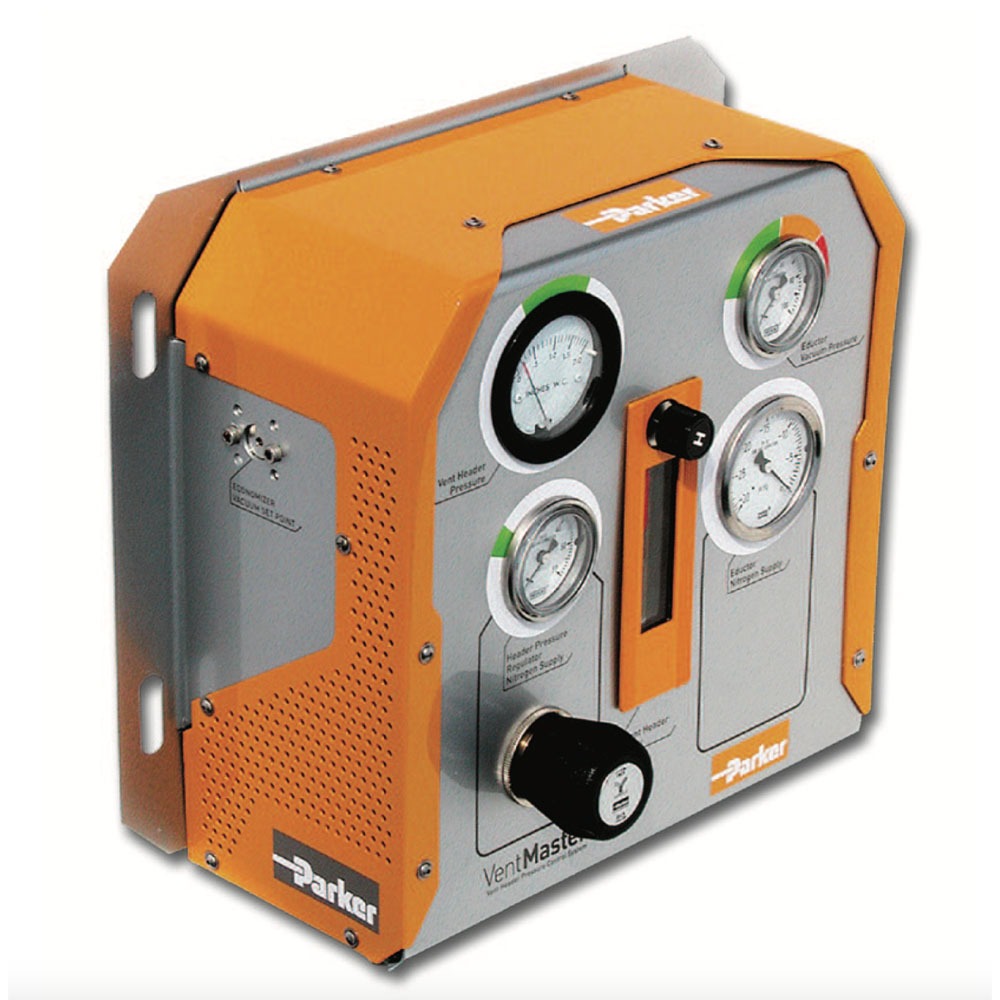

Process Analyzer, Vent Master™ Series
The Parker Vent Master™ is a mechanical pressure control system designed to stabilize vent-header pressure and isolate process analyzers from downstream flare or return system fluctuations.

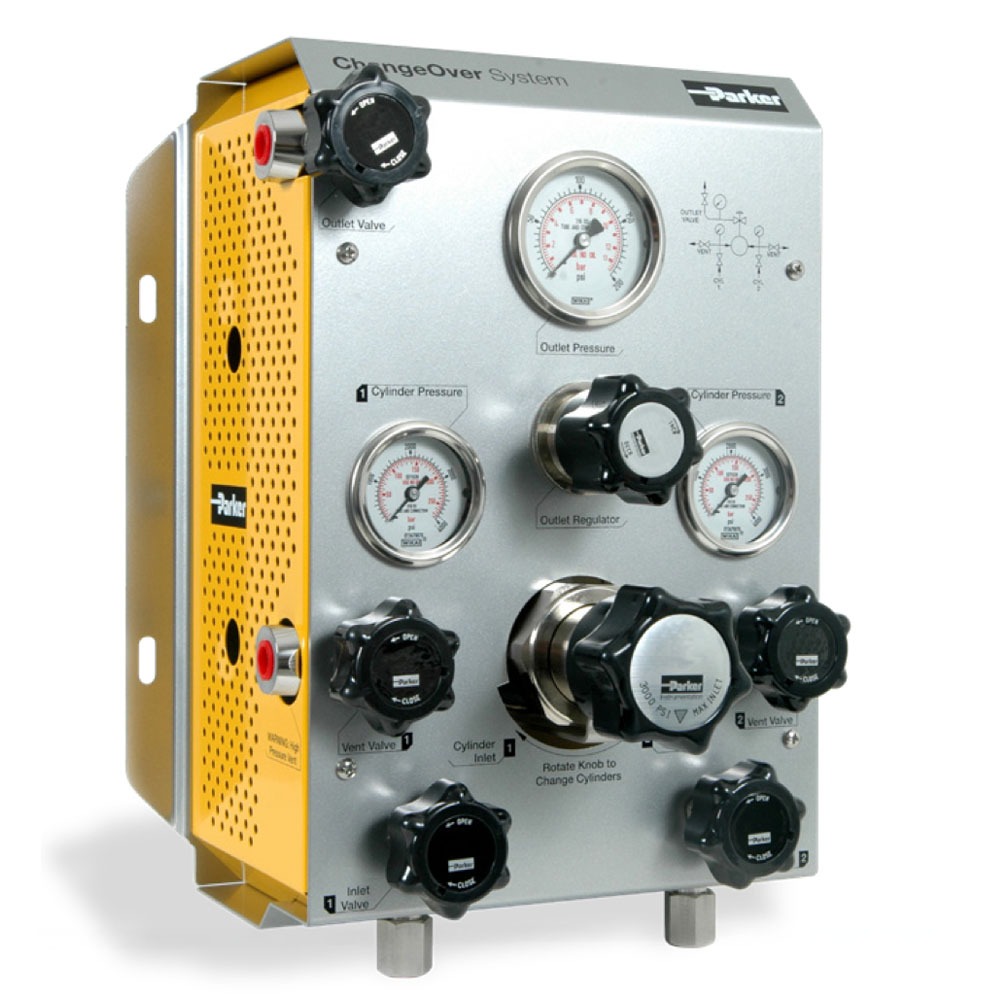

ChangeOver System - COSE Series
The ChangeOver System (COSE) is a compact turnkey module that assists the operator with their total gas management. The COSE maintains a continuous gas delivery from two separate sources allowing for maximum cylinder gas usage from one source before automatically switching to the second source. The COSE lowers specialty gas costs by maximizing the consumption of gas from each cylinder. In addition, the gas cylinder bank(s) can be monitored remotely utilizing the optional pressure switches reducing the need for visual inspection by the operator.

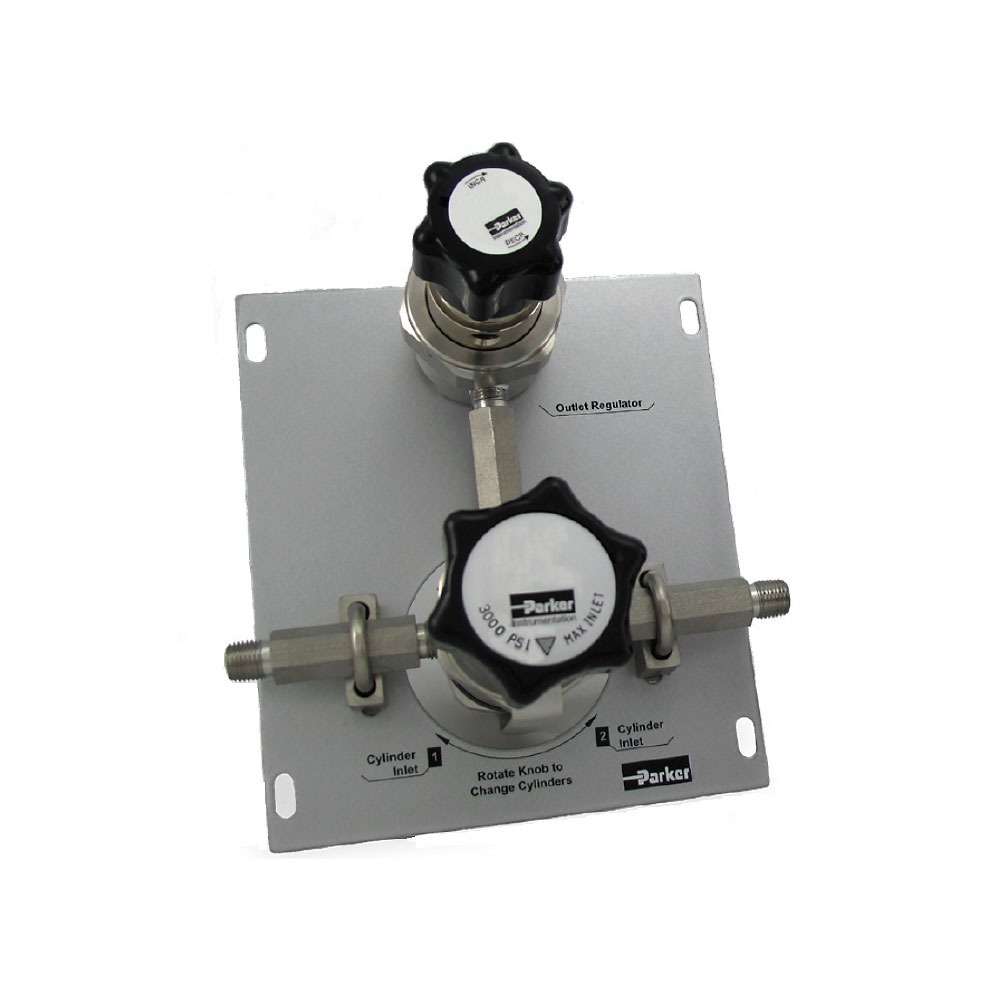

Mini ChangeOver System - COSM Series
The Mini ChangeOver System (COSM) from Parker is a compact, turnkey module that assists operators with their total gas management. Continuous gas delivery is maintained from two separate sources, allowing for maximum cylinder gas usage from one source before automatically switching to the second source. COSM lowers specialty gas costs by maximizing the consumption of gas from each cylinder.
Sample Conditioning System, IntraFlow Series
Sample Conditioning System, IntraFlow Series
Stream Switching System, R-Max II Series
Stream Switching System, R-Max II Series
Closed Loop Sampling System
Closed Loop Sampling System
Heated Enclosure, Hot-Shot Natural Gas Sampling System Series
Heated Enclosure, Hot-Shot Natural Gas Sampling System Series

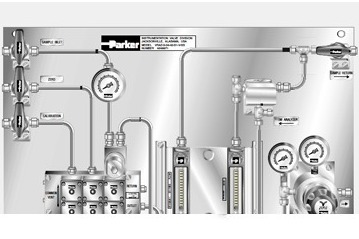

Analyzer Pressure Regulation and Vent Recovery System
Analyzer Pressure Regulation and Vent Recovery System

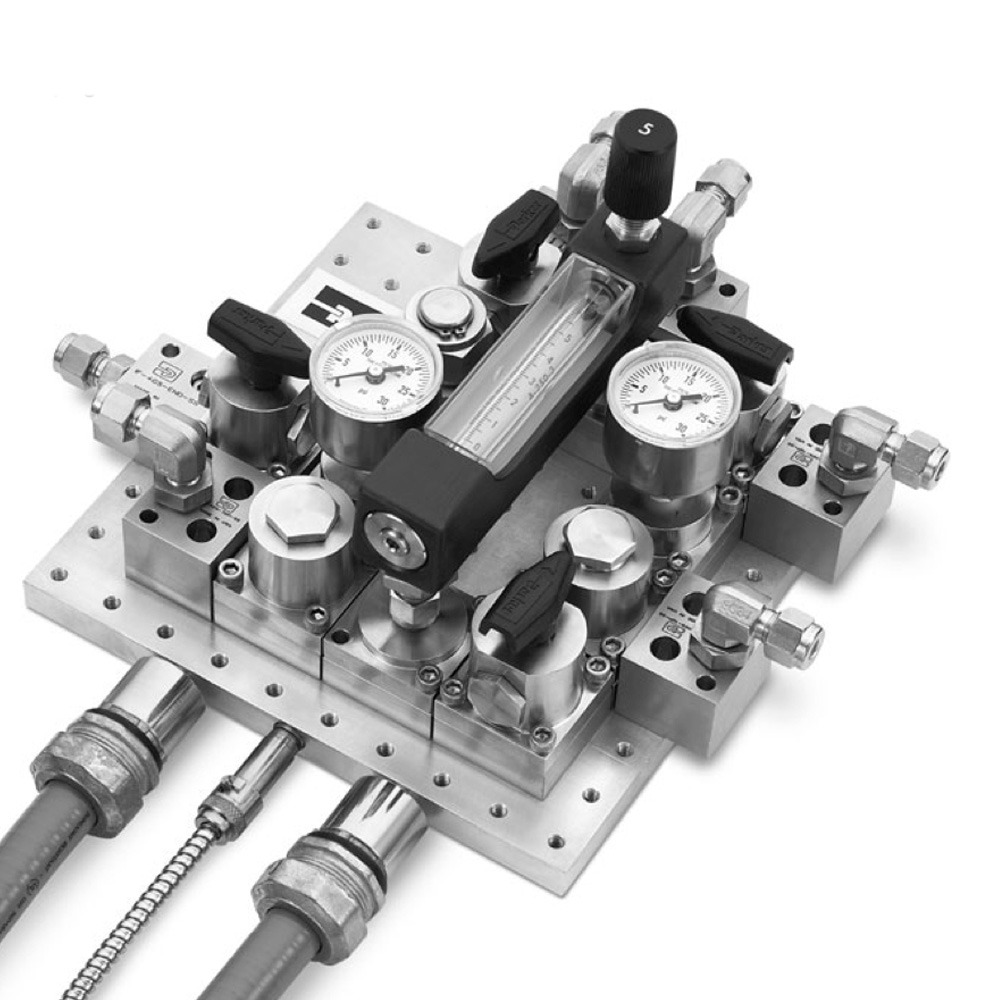

IntraFlow™ Modular Systems
Parker IntraFlow™ substrate fittings have been developed specifically for analytical, lab and other complex general purpose instrumentation flow control systems. ISA/ANSI SP76.00.02 compliant, Parker IntraFlow™ fittings provide maximum flexibility with minimal space requirements. All flowpaths, regardless of direction, are maintained on a single plane within the system as there are no lower level manifold blocks required. Contiguous fitting flow paths are intra-con nected with slip fit pressure connectors, while a threaded pegboard provides connection force and rigidity when fittings are mounted with cap screws. System assembly couldn’t be simpler: a 5/32” hex head wrench is all you need to build with Parker IntraFlow™.

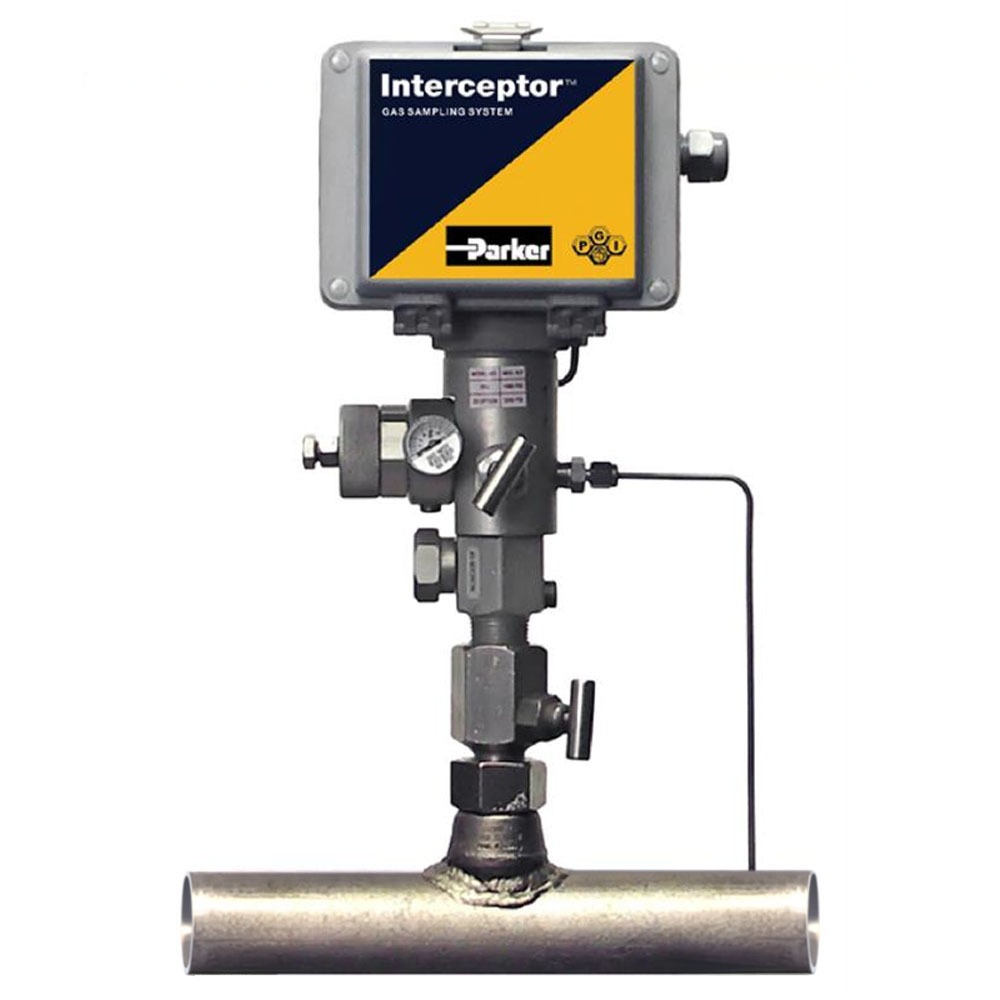

Interceptor Gas Sampling System
The Interceptor Gas Sampling System provides true representative average sampling with both time-based and flow-based capability. This compact, easy to use and install sample system delivers accurate, high quality gas samples each and every collection period. The Interceptor provides a more cost effective sampling method when compared to on-line gas chromatographs and is far more accurate and comprehensive than traditional spot sampling.
