Keckley Company

Keckley Company

Industrial Valves & Pipeline Strainers

Protect the Pipeline. Control the Flow. Built for Reliability.

Established in 1914, Keckley Company is a family-owned American manufacturer specialising in high-quality pipeline strainers, ball valves, check valves and industrial flow-control products.

With more than a century of engineering and manufacturing experience, Keckley has developed an extensive portfolio for demanding Oil & Gas, Petrochemical, Chemical, Power Generation, Marine, Water, Industrial and Commercial applications.

Through MONILEK Oilfield, customers across the Middle East can access Keckley flow-control technology together with MONILEK's extensive expertise in Mechanical Valves, Piping, Filtration and Fluid Control Solutions.

Complete Pipeline Protection & Flow Control

Keckley provides an extensive range of products engineered to protect piping systems, control flow, prevent reverse flow and improve the reliability of critical process equipment.

STRAIN → ISOLATE → CONTROL → PROTECT → MAINTAIN

  • BVS2 Seal Welded Ball Valve 2160 WOG

    BVS2 Seal Welded Ball Valve 2160 WOG

    The Keckley Style BVS2 BVS3 BVS6 seal welded high pressure stainless steel ball valves and carbon steel ball valves are constructed from investment cast ASTM grade materials that are NACE MR0175 compliant. They are machined to exacting specifications. Full seal welding of body to tailpiece eliminates the possibility of the tailpiece unthreading, leaking or "blowing out" in service. All valves are shell and seat tested in accordance with API 598.

  • BVSC Class 900 Seal Welded Ball Valve 2160 WOG

    BVSC Class 900 Seal Welded Ball Valve 2160 WOG

    BVSC Class 900 Seal welded stainless steel ball valves and carbon steel ball valves are ASME B16.34 and API 608 compliant which provides full conformance to ASME B31 Piping Codes. These valves are Full Bore and API 607 Fire Safe and NACE MR0175 compliant. BVSC Size range includes 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2" and 2" ball valves.

  • BVS3 Class 1500 Seal Welded Ball Valve 3600 WOG

    BVS3 Class 1500 Seal Welded Ball Valve 3600 WOG

    BVS3 Class 1500 Seal welded stainless steel ball valves and carbon steel ball valves are offered in both Full and Reduced Bore sizes. They are ASME B16.34 and API 608 compliant which provides full conformance to ASME B31 Piping Codes. These valves are also API 607 Fire Safe and NACE MR0175 compliant. BVS3 Size range includes 1/4", 3/8", 1/2", 3/4", 1", 1-1/2" and 2" ball valves.

  • BVS6 Class 2500 Seal Welded Ball Valve 6000 WOG

    BVS6 Class 2500 Seal Welded Ball Valve 6000 WOG

    BVS6 Class 2500 Seal welded stainless steel ball valves and carbon steel ball valves are ASME B16.34 and API 608 compliant which provides full conformance to ASME B31 Piping Codes. These valves are also API 607 Fire Safe and NACE MR0175 compliant. BVS6 Size range includes 1/4", 3/8", 1/2", 3/4", 1", 1-1/2" and 2" ball valves.

  • BVM3 Class 800 3-Piece Maintenance Design Ball Valves 1920 WOG

    BVM3 Class 800 3-Piece Maintenance Design Ball Valves 1920 WOG

    Keckley Class 800 3-Piece Maintenance Design ball valves are ASME B16.34 and API 608 compliant.

  • BVF2 Split-Body Flanged Ball Valve Class 150 & 300

    BVF2 Split-Body Flanged Ball Valve Class 150 & 300

    BVF2 Class 150 & 300 2-Piece Split-Body Full Port Flanged Ball Valves are ASME B16.34 and API 608 compliant, and offer the hightest Cv flow capacity of any flanged end ball valve available today. "Submerged " packing adjustment and ISO mounting pads allow direct mount of ISO compliant actuators and gear operators. API 607 Fire Safe and NACE MR0175 Compliance is standard. BVF2 Size range includes 1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4", 6" and 8" ball valves.

  • BVF1 Unibody Flanged Ball Valve Class 150 & 300

    BVF1 Unibody Flanged Ball Valve Class 150 & 300

    BVF1 Class 150 & 300 Unibody Flanged Ball Valves are ASME B16.34 and API 608 compliant, and include standard ISO 5211 actuator mounting. "Submerged " packing design allows ease of packing adjustment after actuators are installed. These valves are also API 607 Fire Safe and NACE MR0175 compliant. BVF1 Size range includes 1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4" and 6" ball valves.

  • Fugitive Emissions API 641 Compliant Ball Valves

    Fugitive Emissions API 641 Compliant Ball Valves

    Keckley, a leader in ball valve compliance and safety, has certified ball valves to be fully compliant to API 641.

  • BVF2 Split-Body Flanged Ball Valve Class 600

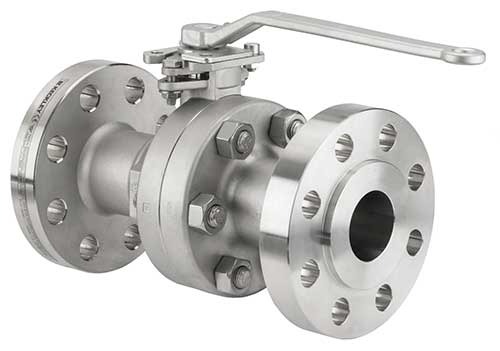

    BVF2 Split-Body Flanged Ball Valve Class 600

    BVF2 Class 600 2-Piece Split-Body Full Port Flanged Ball Valves are ASME B16.34 and API 608 compliant, and offer the hightest Cv flow capacity of any flanged end ball valve available today. "Submerged " packing adjustment and ISO mounting pads allow direct mount of ISO compliant actuators and gear operators. API 607 Fire Safe and NACE MR0175 Compliance is standard.

  • BV12 Unibody Threaded Ball Valve 2000 PSIG

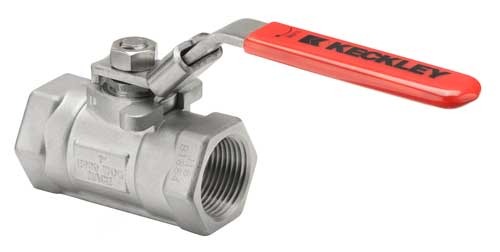

    BV12 Unibody Threaded Ball Valve 2000 PSIG

    BV12 Unibody Threaded Ball Valves are ASME B16.34 and API 608 compliant, and include standard ISO 5211 actuator mounting. "Submerged " packing design allows ease of packing adjustment after actuators are installed. These valves are also API 607 Fire Safe and NACE MR0175 compliant.

  • BV10 Unibody High Pressure Ball Valve

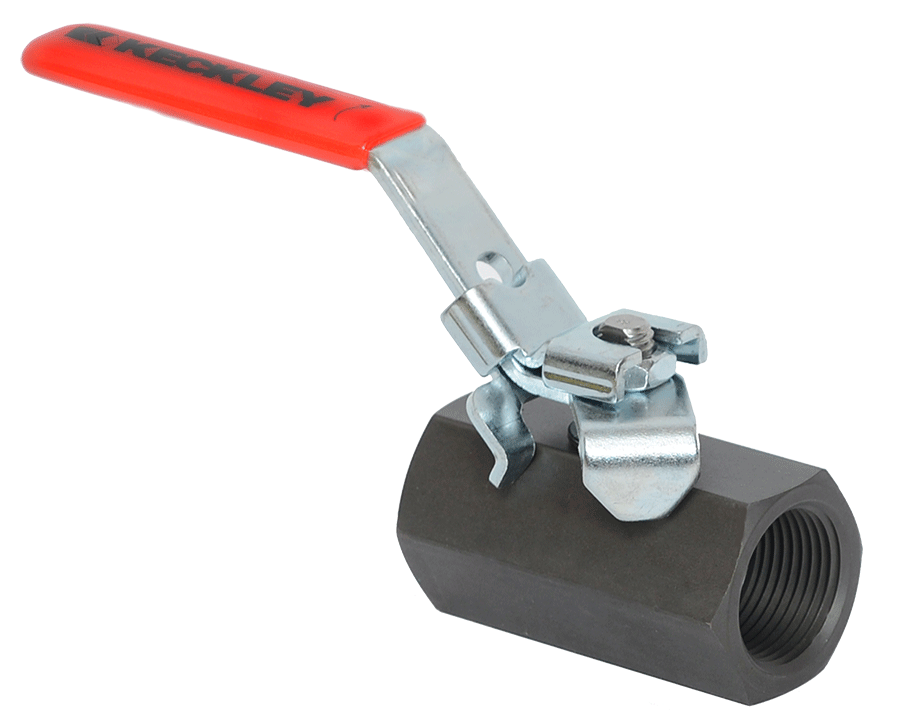

    BV10 Unibody High Pressure Ball Valve

    Keckley Style BV10 AISI 1017 Barstock Unibody ball valves offer economical high pressure performance, and are NACE MR0175 compliant. They are machined to exacting specifications. Unibody construction eliminates the possibility of the tailpiece unthreading, leaking or “blowing out” in service. All valves are shell and seat tested in accordance with API 598.

  • BVF3 Full Port 3-Way Flanged End Diverter Ball Valve

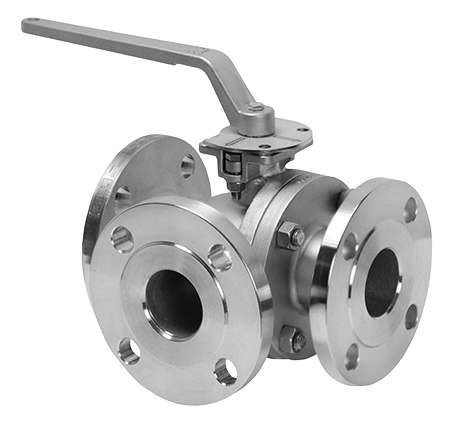

    BVF3 Full Port 3-Way Flanged End Diverter Ball Valve

    The Keckley Style BVF3 3-Way full flanged end ball valves employ investment or shell cast bodies & tailpieces, all produced from ASTM grade materials that are properly heat treated and chemically finished. All wall thicknesses comply with ASME B16.34 as do bolting stress levels.

  • BVG3 Seal Welded High Pressure Ball-Type Gauge Valve

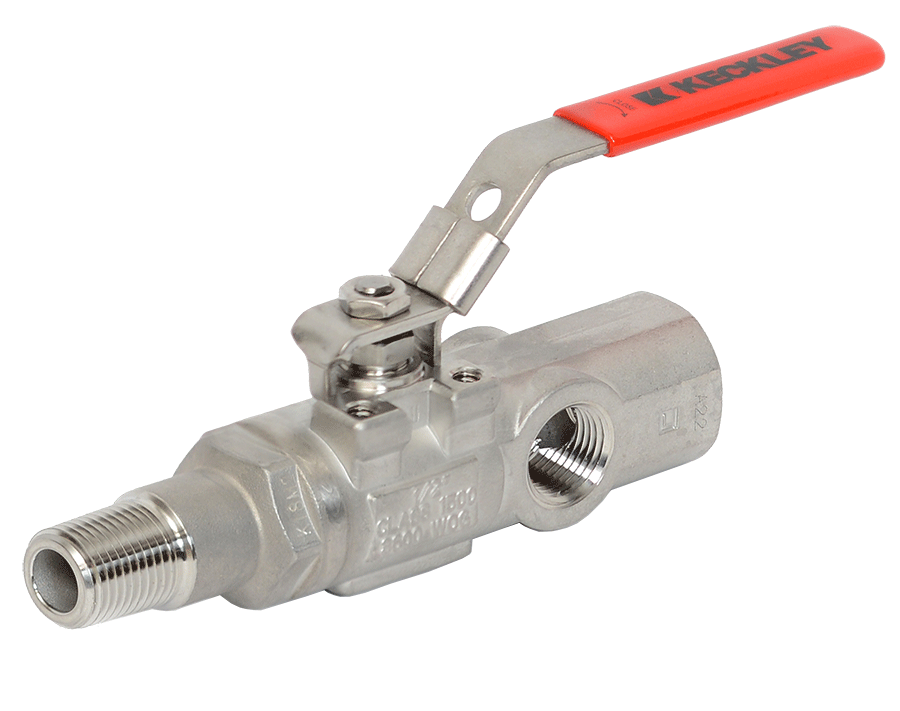

    BVG3 Seal Welded High Pressure Ball-Type Gauge Valve

    The BVG3 Gauge Valves are designed for high pressure service where gauges or other instruments are required to be installed on the “downstream” side of the valve. Two ½” NPT female threaded ports are provided for this purpose

  • BVG10 Seal Welded High Pressure Ball-Type Gauge Valve

    BVG10 Seal Welded High Pressure Ball-Type Gauge Valve

    The BVG10 Gauge Valves are designed for high pressure service where gauges or other instruments are required to be installed on the “downstream” side of the valve. Two ½” NPT female threaded ports are provided for this purpose

  • BVM2 2-Piece Bolted Body Ball Valve

    BVM2 2-Piece Bolted Body Ball Valve

    High pressure Oil & Gas and Industrial piping applications where the safety of bolted-body construction is required, and the ability to repair the valve is important. Operating pressures of 3000 PSIG and lower are suitable
