Autoclave Engineers
High & Ultra-High Pressure Valves, Fittings and Tubing
Engineered for Extreme Pressure. Proven for Critical Applications.
Since 1945, Parker Autoclave Engineers® has been a global specialist in high-pressure and extreme-temperature fluid control systems, developing valves, fittings and instrument tubing engineered to operate safely and reliably in some of the world's most demanding applications.
With pressure capabilities extending up to 150,000 psi (10,340 bar), the Autoclave Engineers product line combines Parker's high-pressure engineering knowledge, precision manufacturing and proven connection technologies to provide complete solutions for critical fluid and gas systems.
Through MONILEK Oilfield, customers across the Middle East can access Parker Autoclave Engineers technology together with MONILEK's extensive experience in Instrumentation, High-Pressure Fluid Control and Hydraulic Technologies.
Complete High-Pressure Fluid Control Solutions

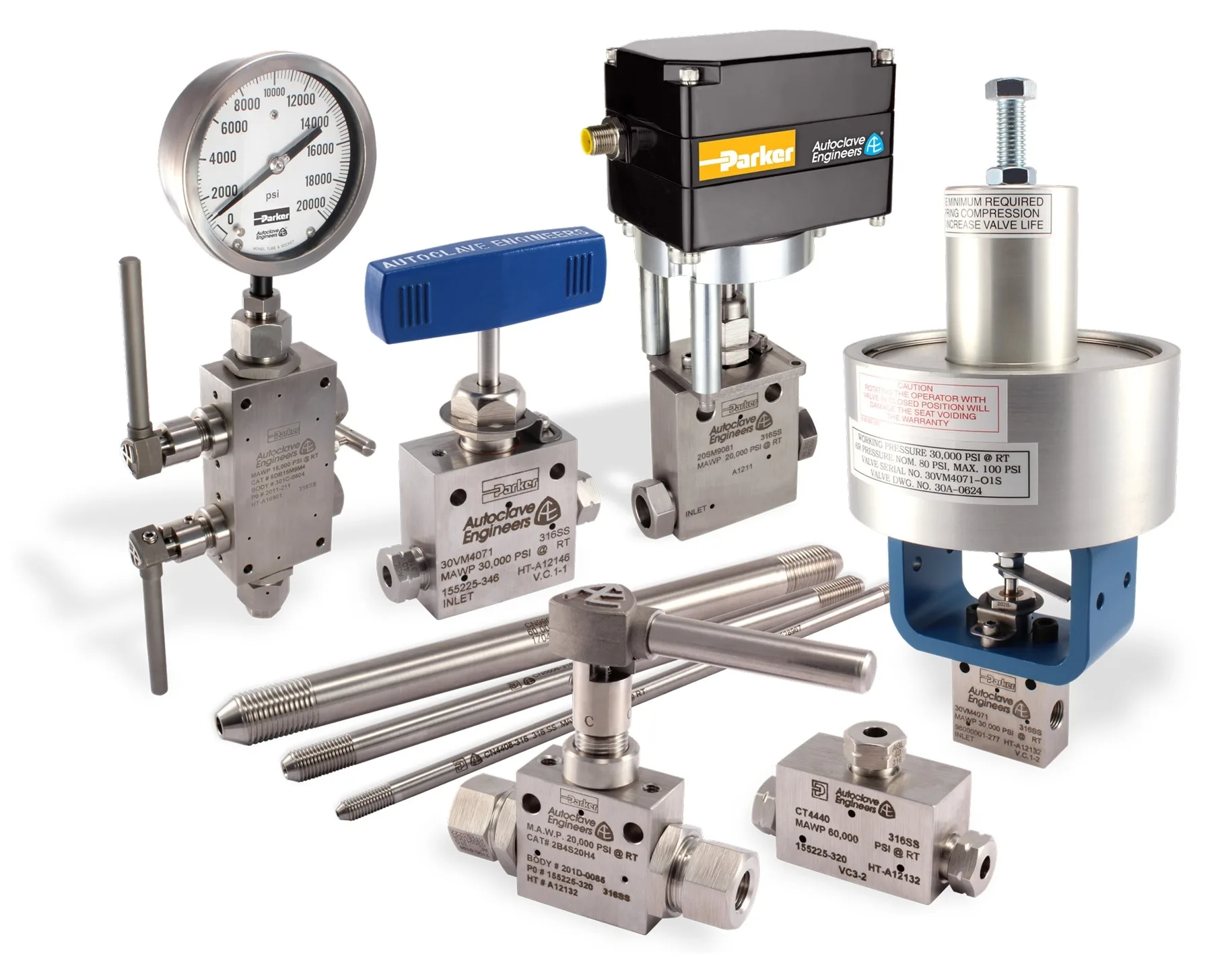

Parker Autoclave Engineers offers an extensive portfolio designed to provide compatible components across the complete high-pressure system:

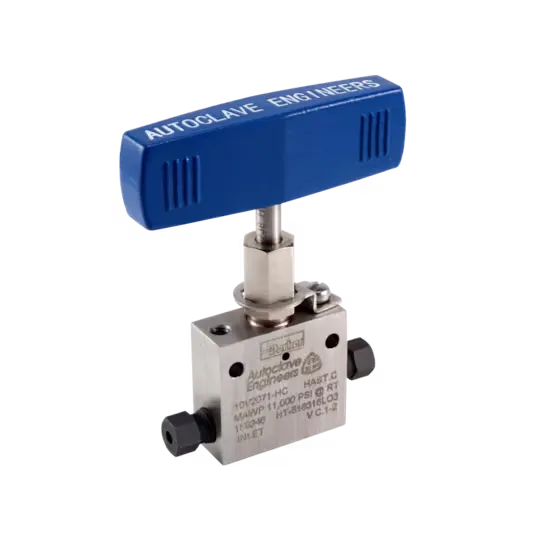

10V Series: Low Pressure Needle Valves (SpeedBite)
1/8", 1/4", 3/8", 1/2" to 15,000 psi (1034 bar) Parker Autoclave's 10V2 Series needle valves are a non-rotating rising stem design, working pressures to 15,000 psi (1034 bar). Tubing sizes range from 1/8" to 1/2". Tubing connections utilizes Parker Autoclave Engineers Speed Bite single ferrule design. Operating temperatures from 0°F to 650°F (-17.8°C to 343°C). 316 stainless steel construction, other options available.

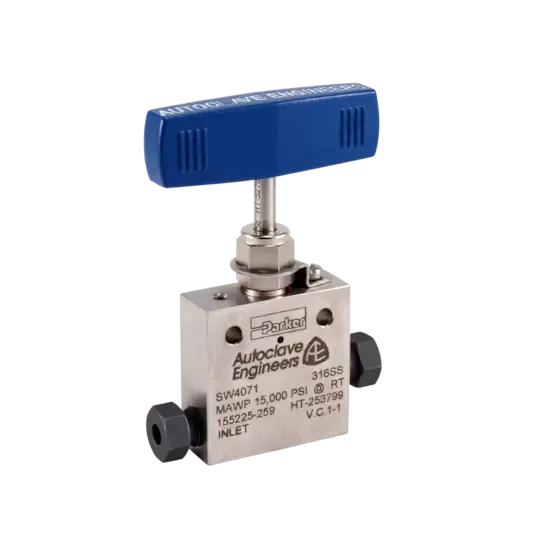

SW Series: Low Pressure Needle Valves (SpeedBite)
1/4", 3/8", 1/2" to 15,000 psi (1034 bar) Parker Autoclave's SW Series needle valves are a non-rotating rising stem design, with working pressures to 15,000 psi (1034 bar). These high flow valves are available in 316 Stainless Steel and utilize the Speed Bite single ferrule connection.

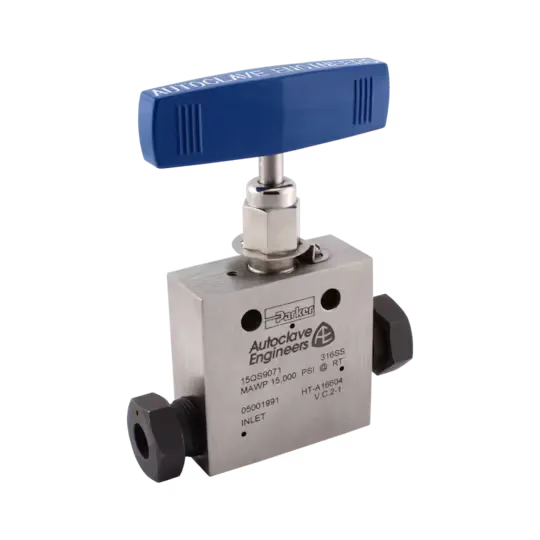

QS (Quick Set) Series: Needle Valves
1/4", 3/8", 9/16", 3/4", 1" to 15,000 psi (1034 bar) Parker Autoclave Engineers QS Series uses Parker Autoclave Engineers’ Quick Set compression sleeve design, providing fast easy make-up and reliable bubble-tight performance in liquid or gas service.

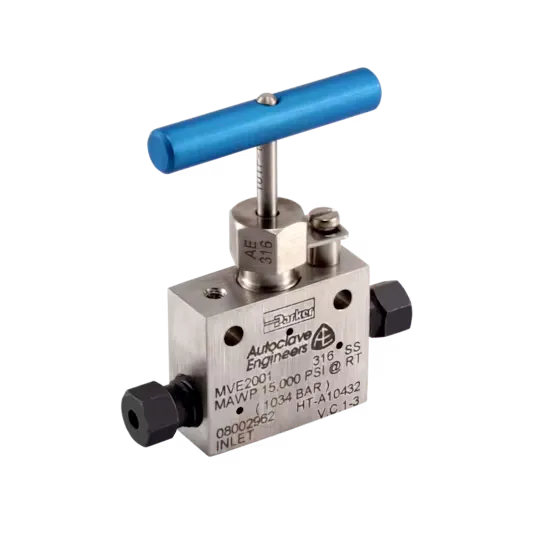

MVE & MV Series: Mini Valve Needle Valves
1/16" and 1/8" to 15,000 psi (1034 bar) Parker Autoclave Engineers Mini valves are designed for laboratory applications and built for safe reliable operation to 15,000 psi (1,034 bar). Parker Autoclave Engineers valves are used in many applications such as the chemical/petrochemical, research, and oil and gas industries.

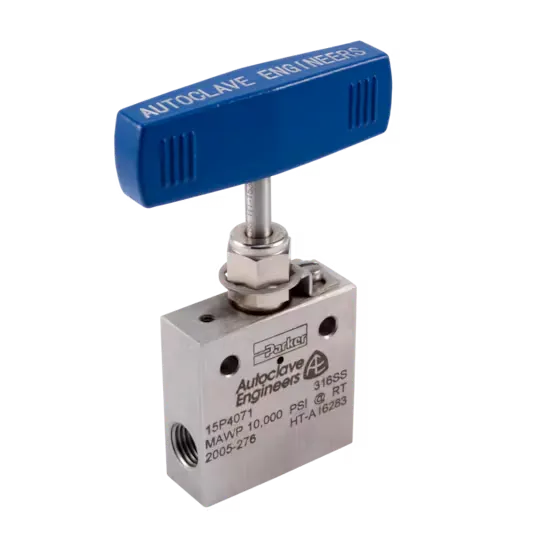

P Series (NPT Style): Needle Valves
1/4", 3/8", 9/16", 3/4", 1" to 15,000 psi (1034 bar) Parker Autoclave Engineers P series valves offer a diverse line of pipe valves rated to 15,000 psi (1034 bar). Sizes range from 1/4" to 1" pipe. Parker Autoclave Engineers P Series needle valves are available in 4 sizes for applications such as the chemical/petrochemical, water-blast, water-jet, research, and oil and gas industries.

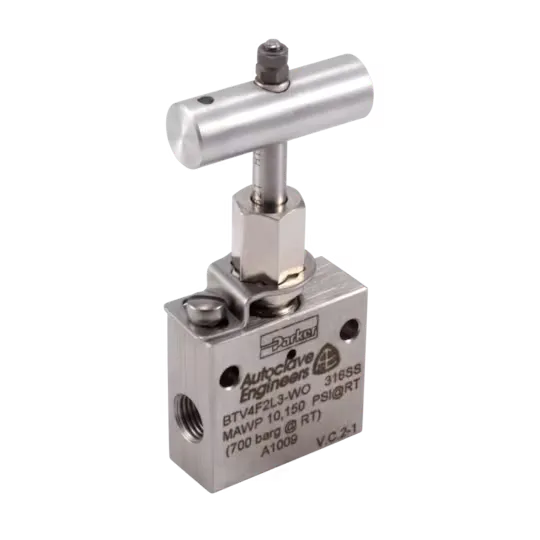

BTV Series: Bottle Valves, Needle Style
1/8" to 1/2" to 15,000 psi (1034 bar) Parker Autoclave Engineers has long been established as the world leader in high-pressure fluid handling components for the chemical/petrochemical, research, and oil and gas industries. Bottle valves are used on sample bottles and cylinders for remote sampling in the oil industry.

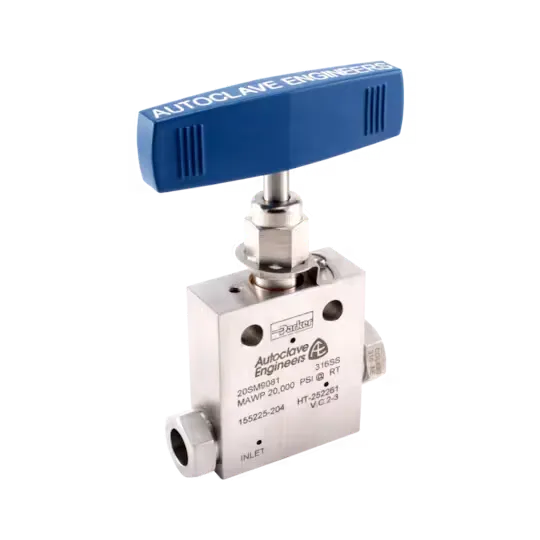

15SM/20SM Series: Medium Pressure Cone & Thread Needle Valves
1/4", 3/8", 9/16", 3/4", 1", 1-1/2" to 20,000 psi (1379 bar) Parker Autoclave Engineers 15SM & 20SM Series Valves are designed specifically for use with matching orifice Medium Pressure Cone & Thread Fittings and Tubing. Designed using high tensile strength UNS S31600 cold worked 316 Stainless Steel material as standard, we include 1-1/2" ID rated to 15,000 psi* (15SM valves) for even higher flow rate capability.

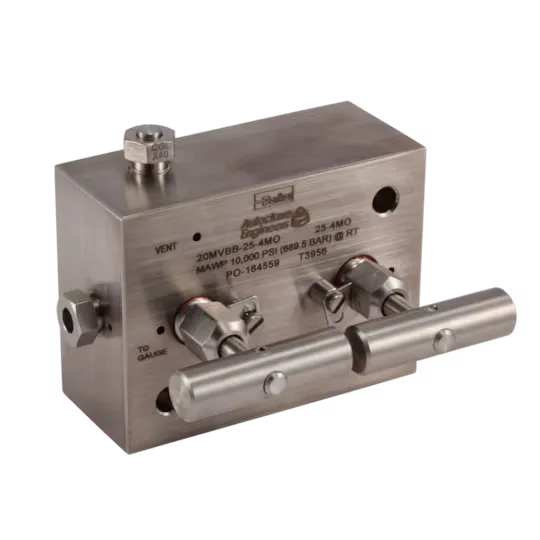

MVBB Series: Block and Bleed Needle Valve
1/4" & 3/8" at 20,000 psi (1379 bar) Parker Autoclave's MVBB Series mini block and bleed needle valves are a two stem manifold valve providing an economical and convenient method of blocking, bleeding and calibrating pressure transmitters and gauges. The valve utilizes the mini valve packing and stem design making it compact and easy to use.

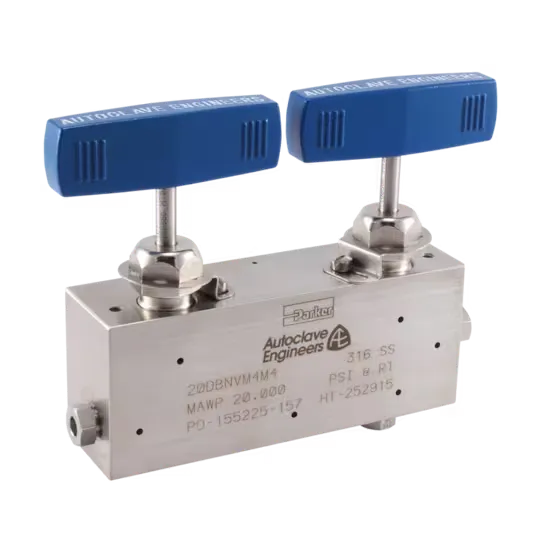

20DBNV Series: Double Block and Bleed Needle Valve
1/4" to 3/8" at 20,000 psi (1379 bar) Parker Autoclave's 20DBNV Series double block and bleed needle valves are a three system manifold valve providing an economical and convenient method of blocking, bleeding and calibrating pressure transmitters and gauges. The valve utilizes standard valve packing and stem design making it compact and easy to use.

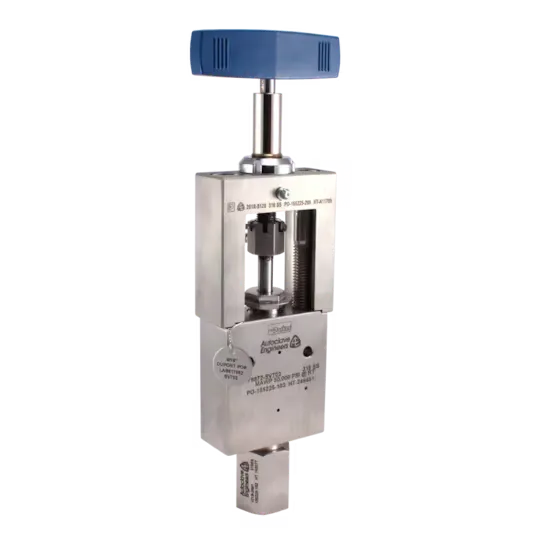

Y Series: Yoke Valve, High Pressure Needle Style
9/16" to 1" at 50,000 psi (3447 bar) Parker Autoclave's Y series Yoke valves are built to operate safely and reliably to 50,000 psi (3447 bar). Yoke valve are extra heavy-duty, plant grade instrument valves for industrial and sever service applications. The Y Series Yoke valves are used in applications such as the oil and gas industries. Parker Autoclave's Yoke valves utilizes either a medium or high pressure coned-and-threaded connection.

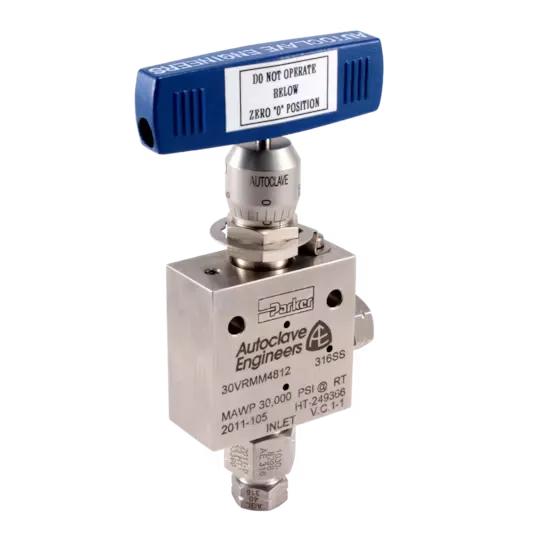

VRMM Series: Micrometering Needle Style
1/8" to 3/8" to 60,000 psi (4137 bar) Parker Autoclave Engineers VRMM series Micro-metering valves are used for the precise metering of fluids up to 60,000 psi (4137bar). These valves are used for fine metering only in conjunction with a shut off valve if closure is needed..

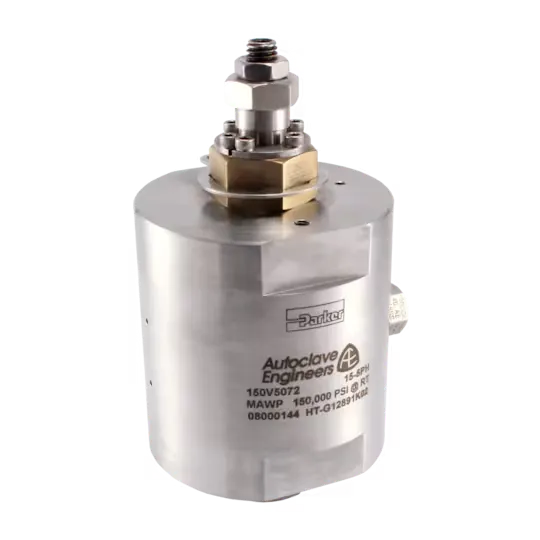

High Pressure Needle Valves
1/4", 3/8", 9/16", 3/4", 1" to 150,000 psi (10342 bar) Series: 30SC, 43SC, 30VM, 40VM, 60VM, 100VM, 150VM are a non-rotating rising stem design, working pressures up to 150,000 psi (10,345 bar). Tubing sizes range from 1/4" to 1" utilizing Parker Autoclave Engineers coned and threaded design. Operating temperatures from -423°F to 1200°F (-252°C to 649°C). 316 stainless steel construction, other options available.

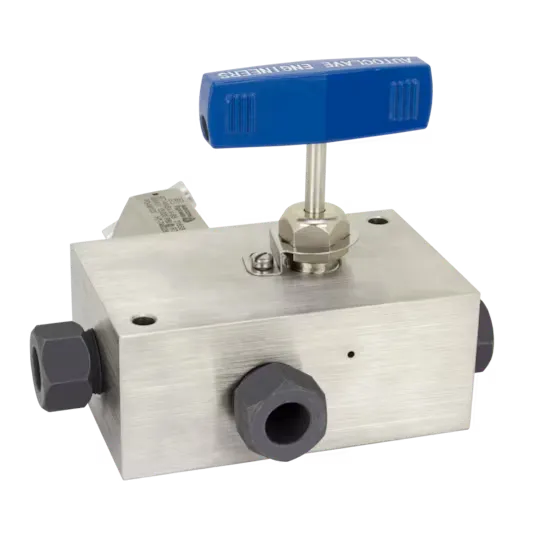

BV Series: Wellhead Gauge & Bleed Valve, Needle Style
3/8" & 9/16" at 30,000 psi (2068 bar) Parker Autoclave Engineers Wellhead Gauge and Bleed valves (BV Series) are designed for reliable shut-off service at a maximum working pressure of 30,000 psi (2068 bar). The Wellhead Gauge and Bleed Valves are standard in 316 stainless steel material. Special materials available on request.

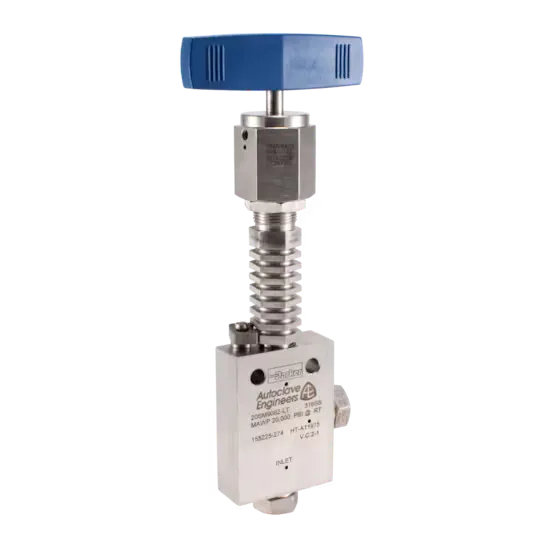

HT & LT Series: Extreme Temperature Needle Valves
1/8" to 1" at 60,000 psi (4137 bar) Parker Autoclave Engineers HT & LT series valves are used in operating conditions from -423°F to 1200°F (-253°C to 649°C) and up to 60,000 psi (4137bar). These valves are used where extreme high and low process temperatures prevent the use of standard design valves. The HT and LT valves are designed with an extended housing removing the pack from the process allowing the valve to operate at these temperatures.
